ACTISENSE

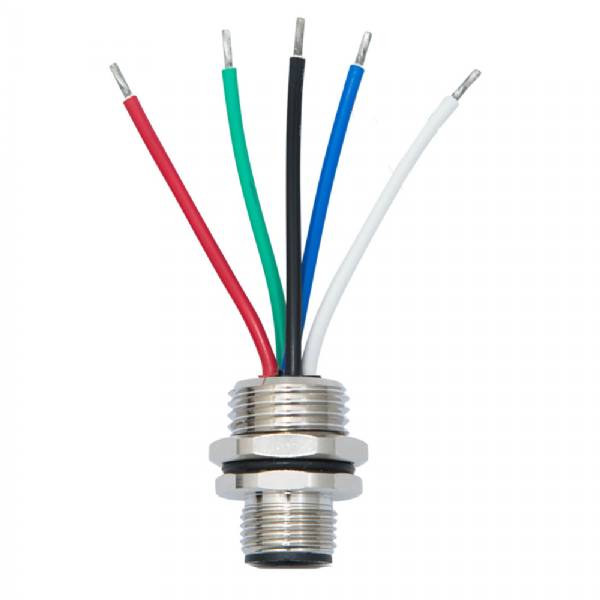

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Manufacturer part #: A2K-PMW-M
UPC: 5060998710164
Condition: New

$22.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Product details

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

Rated Current - 4A
Rated Voltage - 60VDC

Mechanical

Contacts - Brass, gold-plated
Contact Carrier - Nylon & GF
Contact Polarization - Standard M12-"A"-Polarization
Mating Thread - M12
Housing - Brass, nickel-plated
Mounting Thread - PG9
Mounting Nut - Brass, nickel plated - PG9
Mounting Hole Diameter - 15.3mm
Wires - 18 AWG (stripped and tinned)
Wire Jacket - PVC
Weight - 20g

Approvals and Certifications

Protection - IP67 (when mated)
Operating Temperature - -25°C to +90°C
Connector Specification - Meets IEC61076-2-101

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Shipping weight: 0.05 lb
