AIRMAR
B117 0° 50/200kHz Thru-Hull Depth/Temp w/Blue Connector - 600W
- Manufacturer part #
- B117-DT-BL
- UPC
- 641676163592
- Condition
- New
$319.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

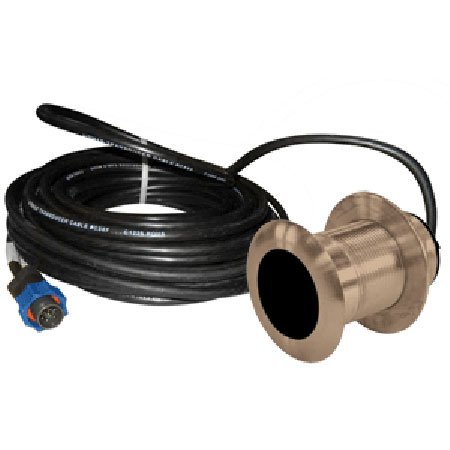

B117 Bronze Thru-Hull Low-Profile 600 W Blue Connector
Applications
Features
Applications
- Planing hull powerboats
- Sailboats
Features
- Industry standard for low-profile transducers
- Depth and temperature
- Good target detail in shallow-water at 200kHz and good deep-water bottom tracking at 50kHz
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Bronze housing
- Boat Size: 8M (25') and up
Specifications
epth & Temp
50/200 kHz
Cone 45 12
600 W RMS
Mid-Performance
Bronze
Thru-Hull mount
7-pin Blue connector
50/200 kHz
Cone 45 12
600 W RMS
Mid-Performance
Bronze
Thru-Hull mount
7-pin Blue connector
Shipping weight: 3.9 lb
