B175C-20-M-MM Thru Hull 20 Deg Tilt

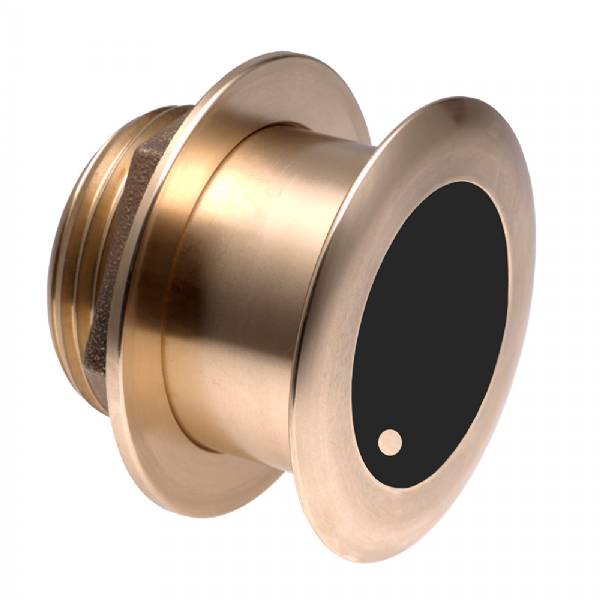

Airmar B175C Medium Frequency CHIRP Transducer with 20d Tilted Element

Model: B175-C-20-M-MM

• Medium-CHIRPS from 85 kHz to 135 kHz, 24 deg to 16 deg beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36 feet)
• Hull Type: Fiberglass or wood

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.

Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector.

Specifications

Hull Deadrise	up to 28 deg
Acoustic window	Urethane
Boat size	Up to 11 m (36 feet)
Hull type	Fiberglass or wood
Frequency	85 kHz to 135 kHz, 24 deg to 16 deg beamwidth
