B275C-LHW Transducer With 12-Pin Garmin MMC

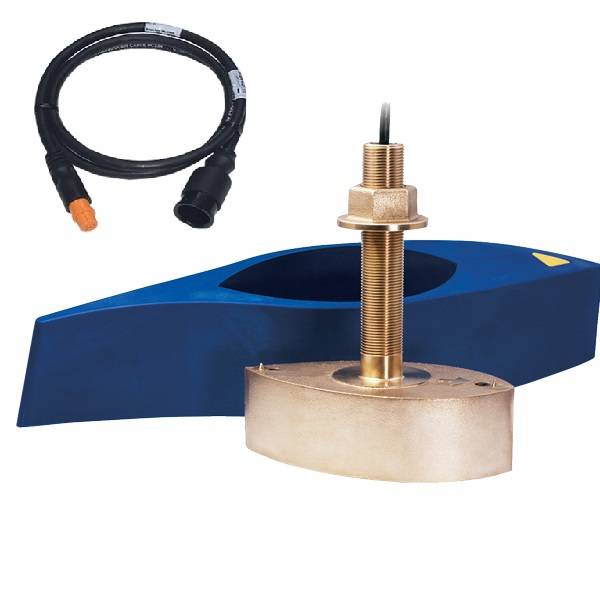

Airmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer with Garmin 12 pin M&M Chirp Cable - 1m

Model: B275C-LHW-12G

• Depth & fast-response water-temperature sensor
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25 deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the beam width is a constant 25 deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Specifications

Low Frequency	CHIRPS from 42 kHz to 65 kHz ?25 deg to 16 deg beamwidth
High Frequency	CHIRPS from 150 kHz to 250 kHz ?25 deg constant beamwidth
Boat size	8 m (25 feet) and above
Hull type	Fiberglass or wood
Hull deadrise	Up to 20 deg with fairing block
Acoustic window	Urethane

What's in the Box:

• B275CLHW-MM
• Fairing block and hardware
• MMC-12G - Garmin 12 pin M&M Chirp Cable - 1m
