AIRMAR
B60-12, 12° Tilted Element? Transducer
- Manufacturer part #
- B60-12-BL
- UPC
- 066510898032
- Condition
- New
$399.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

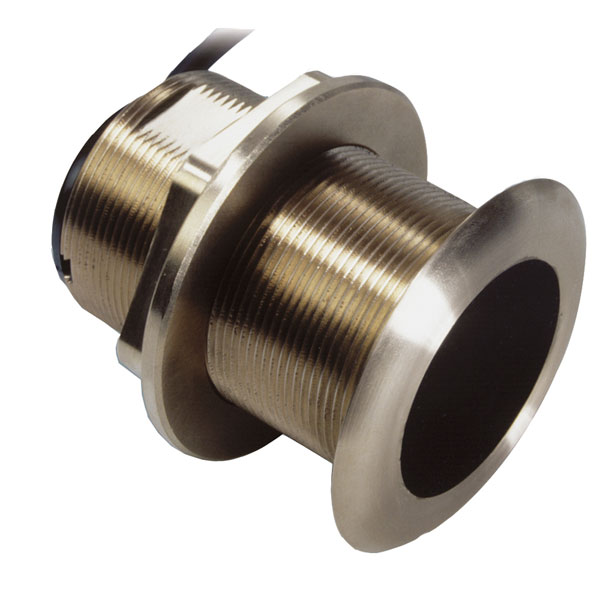

B60 Tilted Element™ 12°
12° tilted version is designed for 8° - 15° deadrise angles
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
12° tilted version is designed for 8° - 15° deadrise angles
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications
Depth & Temperature
50/200 kHz
600 W RMS
Mid-Performance
12° Tilt
Bronze
Mount Thru-hull
7-pin Blue Lowrance
50/200 kHz
600 W RMS
Mid-Performance
12° Tilt
Bronze
Mount Thru-hull
7-pin Blue Lowrance
Shipping weight: 4.85 lb
