AIRMAR

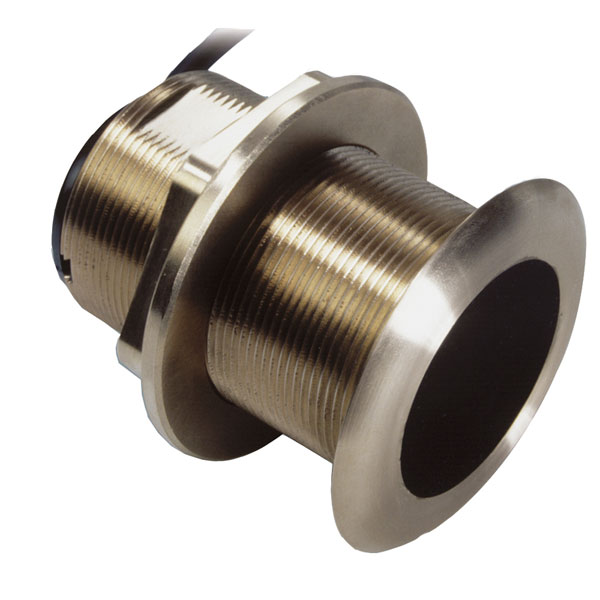

B60-20, 20° Tilted Element Transducer
- Manufacturer part #
- B60-20-BL
- UPC
- 042194534435
- Condition
- New
$399.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
Specifications
Depth & Temperature
50/200 kHz
600 W RMS
Mid-Performance
20° Tilt
Bronze
Mount Thru-Hall
7-pin Blue Connector
50/200 kHz
600 W RMS
Mid-Performance
20° Tilt
Bronze
Mount Thru-Hall
7-pin Blue Connector
Shipping weight: 5.2 lb
