SS60-20-8G 50/200khz 20D Tilted Element with Garmin 8-Pin

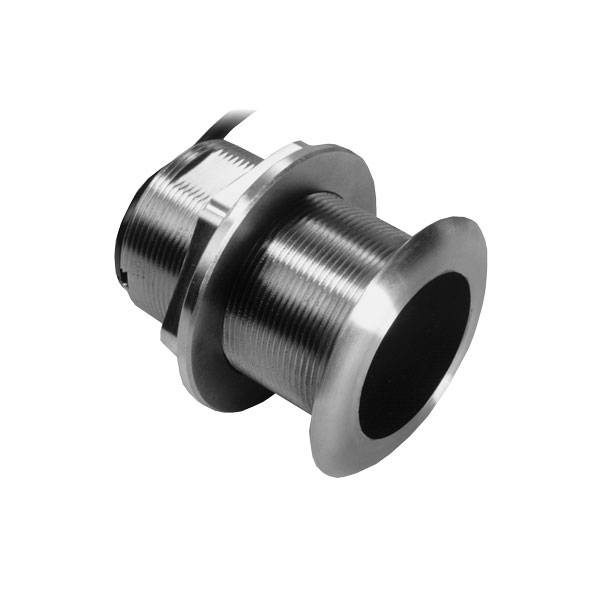

Sirmar SS60 Stainless Steel Thru Hull with 20deg Tilted Element 50/200Khz 8-Pin Garmin Plug

Model: SS60-20-8G

• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8 m (25 feet)
• Stainless steel transducer housing
• Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise

The SS60 is the stainless-steel version of Airmar's popular, B60, Tilted ElementTM transducer. This product provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings. For hulls with a minimal deadrise angle, it is also available without tilt. The nearly-flush housing minimizes drag with only 5 mm (3/16) extending outside of the hull. The SS60 is currently being used by the US Coast Guard.

Specifications

Beam Width	45/12
Frequency	50/200

"
