ALBIN PUMP

DC Driven Circulation Pump w/Brushless Motor - BL10CM 12V

Manufacturer part #: 13-01-005
Condition: New

$87.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

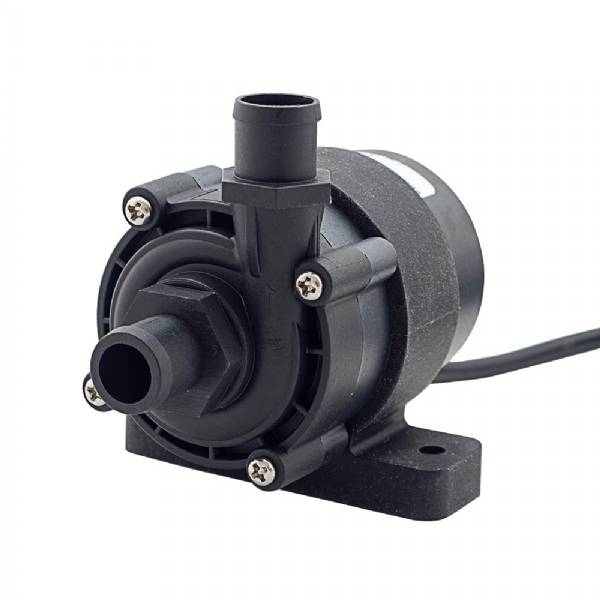

DC Driven Circulation Pump with Brushless Motor - BL10CM 12V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

Motor brush-less magnetic isolated design
For continuous duty
Life span: 20,000 hours
Materials of pump housing: ABS, PES/SPS7PA66
Motor IP classification: IP 68
Noise class: 35dB
The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C

Specifications:

Port size: (inch) 5/8" / (mm) 14
Weight: 0.2 kg
Capacity at 0.1 bar: 19 l/min
Capacity at 0.25 bar: 16 l/min
Max load: 2 A
Max power consumption: 80 W

*Includes pump and motor

Shipping weight: 1 lb
