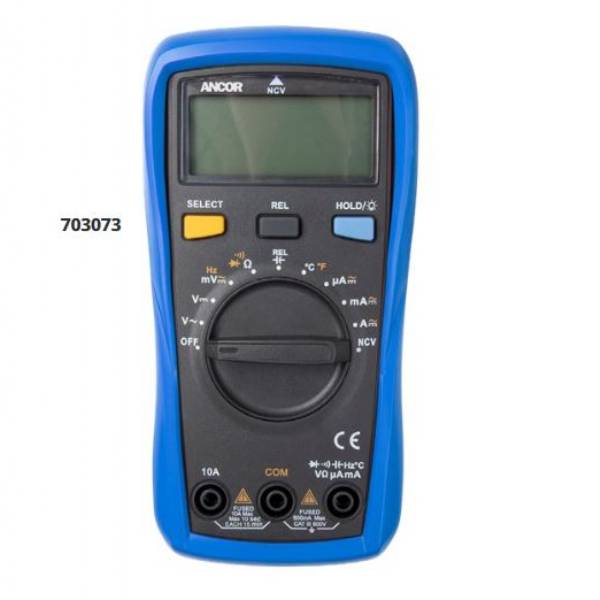

True RMS 12 Function Digital Multimeter

Ancor True RMS 12 Function

Digital Multimeter

Model: 703073

• Auto ranging capability allows the meter to automatically determine the resolution based on the application
• Clear LCD display
• Comfortable protective cover, with test lead hanging groove
• High voltage warning
• Auto power off functionality to save battere life
• Batteries: two AAA Batteries (not included)
• Continuity
• Diode Test
• NCV

Specifications

DC Voltage (V)	600.0mV, 6000mV/6.000V, 60.00V, 600.0V
AC Voltage (V)	600.0mV, 6000mV/6.000V, 60.00V, 600.0V
DC Current (A)	600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A
AC Current (A)	600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A
Resistance	600.0, 6000/6.000k, 60.00k, 600.0k, 60.00M
Capacitance (F)	9.999nF, 99.99nF, 999.9nF, 9.999uF, 99.99uF, 999.9uF, 9.999mF
Frequency (Hz)	10.00Hz-1.000MHz
Temperature ( degF)	-40 degF to 1832 degF
Temperature ( degC)	-40 degC to 1000 degC
Overload Protection	600V rms
CAT Rating	CAT 111 600V
