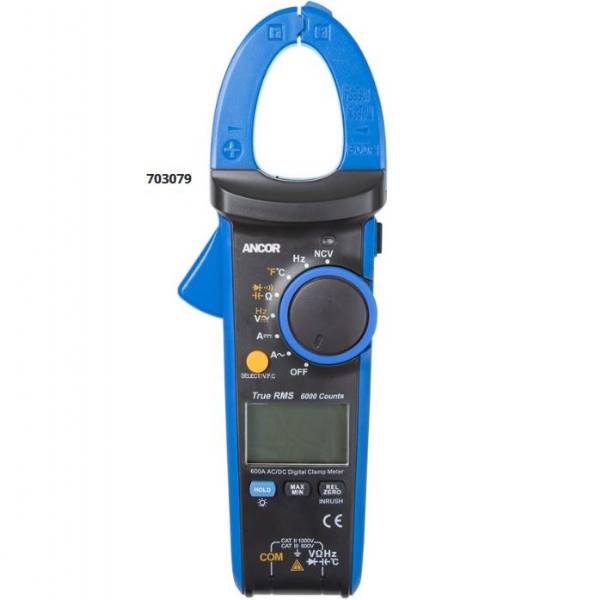

True RMS 12 Function Digital Snap-Around Multimeter

Ancor True RMS 12 Function

Digital Snap-Around Multimeter

Model: 703079

• Easy to reead backlit OLED screen
• Non-contact AC voltage testin
• Providees accurate reeadings for both puree sin wave and modified sine wave elecctrial circuits
• Zeroing function
• Flashlight for us in dark compartments
• Includes convenint carrying cas
• Batteries: three AAA Batteris (not included)
• Continuity
• Diode Test
• NCV

Specifications

DC Voltage (V)	600.0mV, 6000mV/6.000V, 60.00V, 600.0V, 1000V
AC Voltage (V)	600.0mV, 6000mV/6.000V, 60.00V, 600.0V, 750V
DC Current (A)	60.00A, 600.0A
AC Current (A)	60.00A, 600.0A
Resistance	600.0, 6000/6.000k, 60.00k, 600.0k, 6.000M. 60.00M
Capacitance (F)	60.00nF, 600.0nF, 6.000uF, 60.00uF, 600.0uF, 6.000mF
Frequency (Hz)	10.00Hz-1.000MHz
Temperature ( degF)	-40 degF to 1832 degF
Temperature ( degC)	-40 degC to 1000 degC
Overload Protection	1000V DC, 750V AC
CAT Rating	CAT II 1000V, CATIII 600V
