B&G
Nemesis 7 Sailing Display
- Manufacturer part #
- 000-16518-001
- UPC
- 9420064140411
- Condition
- New
$1,329.99
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details

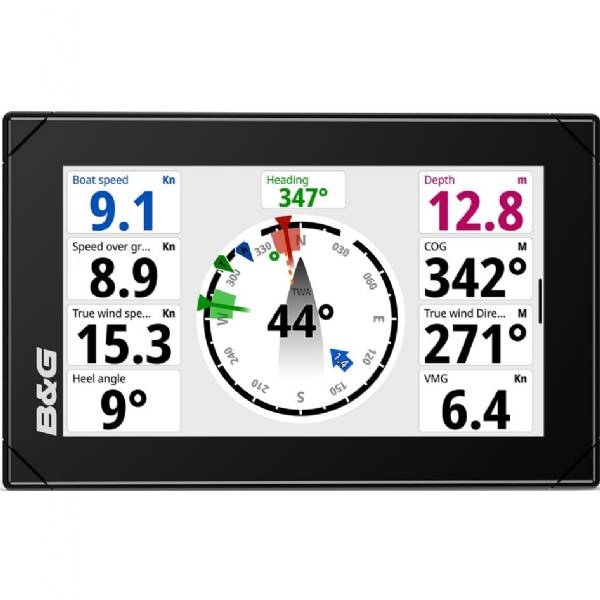

BNG Nemesis 7 Sailing Display
Model: 000-16518-001- Pre-set dashboards or easy to use drag & drop editor for full customisation
- Wide choice of digital data displays including graphical gauges, SailSteer™, tank levels, IP camera views, histograms and images
- Automatic Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring, Pilot Status
- Bright touch screen, with super-wide viewing angles
- Adjustable palettes and backlight for optimal view in all conditions
- Mount in portrait and landscape
- Connect multiple screens via the Nemesis Hub
- Ethernet and/or NMEA2000
Nemesis® 7 is the perfect solution for displaying all the crucial sailing data you need, on the mast or at the helm. The super bright touch screen provides outstanding visibility, from anywhere on the boat, in all conditions. Completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own. You can view your trusted sailing data in precisely the way you want to, ensuring you get the most accurate data right in front of you, all the time.
Specifications| Display | |
| Display Resolution | 1024 x 600 |
| Screen Brightness | 1200 nits |
| Viewing Angles | 80 top/bottom, +/ 80 left/right |
| Connectivity | |
| Ethernet Ports | 1 x 100 Mbit |
| Connectivity Wi Fi | 802.11 b/g |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Electrical | |
| Power Consumption max | 12W |
| Recommended Fuse Rating | 1.5 Amp |
| Supply Voltage | 10 - 32 V DC |
| Environment | |
| Operating Temperature Range | -15C to +55C (-5F to 131F) |
| Storage Temperature Range | -20C to +60C (-4F to 140F) |
| Waterproofrating | IP67 |
| Physical | |
| Compass Safe | 500mm (19.6") |
| Dimensions W x H x D | 195 x 123 x 68mm (7.7 x 4.8 x 2.7") |
| Mounting Type | Flush, Panel |
| Weight | 0.7 kg (1.5 lbs) |
| Warranty Period | 2 years |
Shipping weight: 4.4 lb
