BARTON MARINE
Stanchion Lead Block
- Manufacturer part #
- N02190
- UPC
- 5035088080564
- Condition
- New
$28.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
Stanchion Lead Block

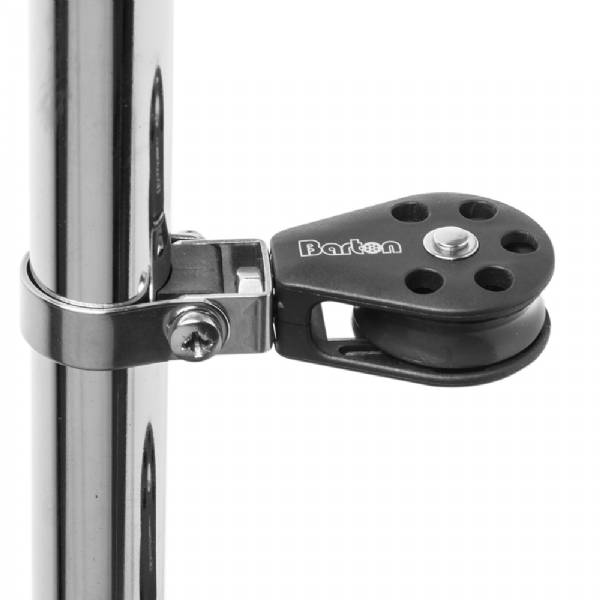

Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment.
Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads. The unit will fully rotate about the swivel head to match your pulling angle.
Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.
Technical Specifications
- Sheave - Single
- Sheave Size - 1-3/8" (35mm)
- Maximum Rope Diameter - 5/16" (8mm)
- Safe Working Load - 815 lb (370 kg)
- Maximum Stanchion (Tube) Size - 1" (25mm)
*Sold as an Individual
Shipping weight: 0.15 lb
