BEP MARINE

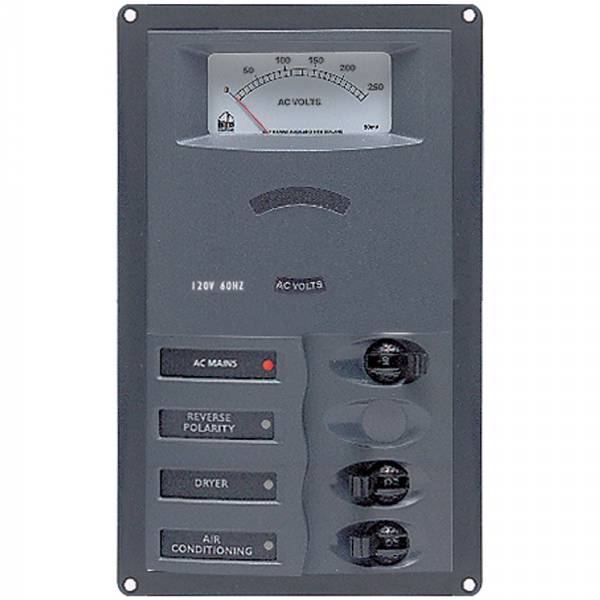

900-ACM6V-AM-110 7 Way AC Circuit Breaker Panel
- Manufacturer part #
- 900-ACM6V-AM-110
- UPC
- 843687007333
- Condition
- New
$436.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details
Size (HxWxD): 200x239x65
Label Sheet: Set - 5
Buss Bars: Yes x 2 (Earth & Neutral).
Volts: 230V or 110V
Meter: Analogue volts.
Circuit Breakers:
Single pole
1 x 5amp
3 x 10amp
3 x 15amp
1 x 20amp
Double Pole
1 x 25amp
1 x 20amp
Includes lock out control and reverse polarity indicator.
| AC Control Panel - Analogue Meters | ||||||||||||||
| Size Inches | Label Sheet s | Neg Bus | 5 | 10 | 15 | 20 | 25 | 30 | 20 | 25 | 30 | 50 | 80 | |
| 110 | 7.9x5x2.5 | 200x127x165 | 5 | 2 | 1 | 1S-6MM-2 | 900-ACM2-AM-110 | |||||||
| 110 | 11.6x5x2.5 | 295x127x65 | 5 | 1 | 3 | 3 | 1 | 1 | 1 | 1S-6mm-2 | 900-ACM6V-AM-110 | |||
| 110 | 7.9x9.75x2.5 | 200x239x65 | 5 | 2 | 3 | 2 | 1 | 1 | 1 | 2x6Way | 900-AC2H-AM-110 | |||
| 110 | 15x5x2.5 | 380x127x65 | 5 | 1 | 2 | 3 | 2 | 1 | 1 | 1 | 2x6Way | 900-AC2V-AM-110 |
Shipping weight: 5 lb
