BLUE SEA

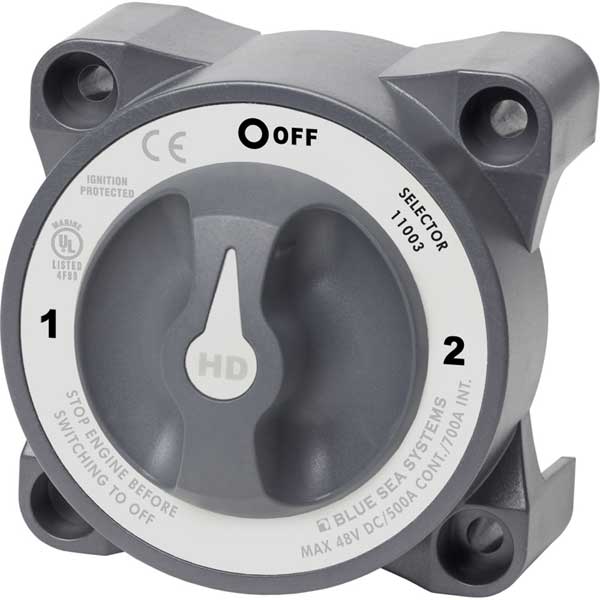

11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position
- Manufacturer part #
- 11003
- UPC
- 632085110031
- Condition
- New
$94.95
In stock
Estimated to ship by Monday, October 19.
11003
Features:
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables
- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Shipping weight: 1.3 lb
