BLUE SEA

1498 - 360 Panel - 8 Position 12V Panel w/Dual USB & 12V Socket

Manufacturer part #: 1498
Condition: New

$219.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

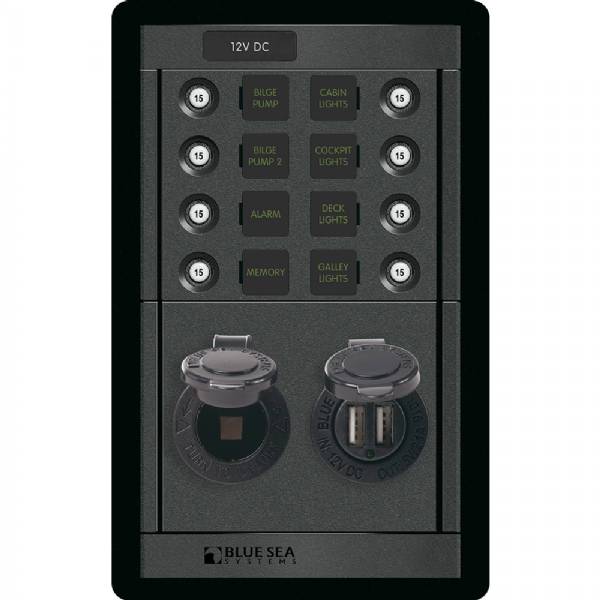

1498 - 360 Panel - 8 Position 12V Panel with Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

ON-indicating LEDs
Backlit label positions

Technical Specifications:

Positions - Eight (8)
Nominal Voltage - 12V DC
Maximum Amperage - 90A
Circuit Breaker Type - 8 Push Button (15A)
USB Output - 12/24V Dual USB
Socket Output - 12V Dash socket
Dimensions - (H x W x D) - 7.75" x 4.88" x 3.5" (197 x 124 x 89mm)

In the Box:

1498 Panel
Instruction Manual

*Sold as an Individual

Shipping weight: 1.3 lb
