BLUE SEA
1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker
- Manufacturer part #
- 1503
- Condition
- New
$681.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details

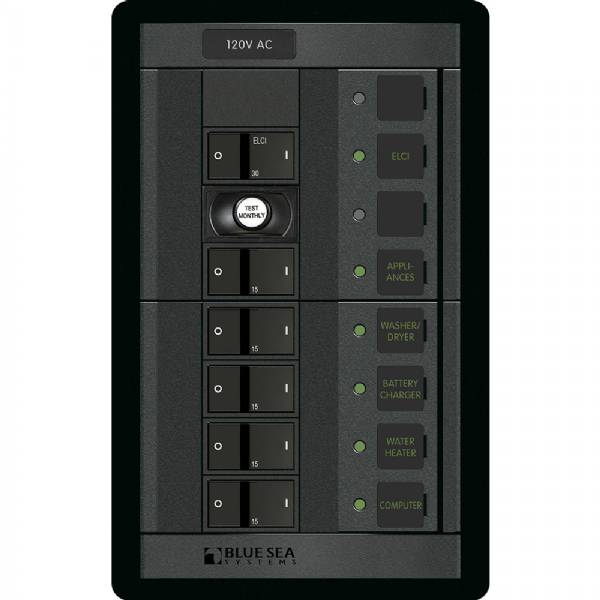

1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Five (5) + ELCI
- Amperage - 30A AC trip reference
- Actuator Style - Flat Rocker
- Maximum Voltage - 120V
- Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
- Leakage Trip Amps - 30mA
- Dimensions (H x W x D) - 7.75" x 4.88" x 3.99" (197 x 124 x 101mm)
In the Box:
- 1503 Panel
- Instruction Manual
*Sold as an Individual
