BLUE SEA
4161 10A Push Button LED Ring Switch Off-(On) Blue Momentary On
- Manufacturer part #
- 4161-BSS
- UPC
- 632085041618
- Condition
- New
$23.95
In stock
Estimated to ship by Monday, October 19.
Product details

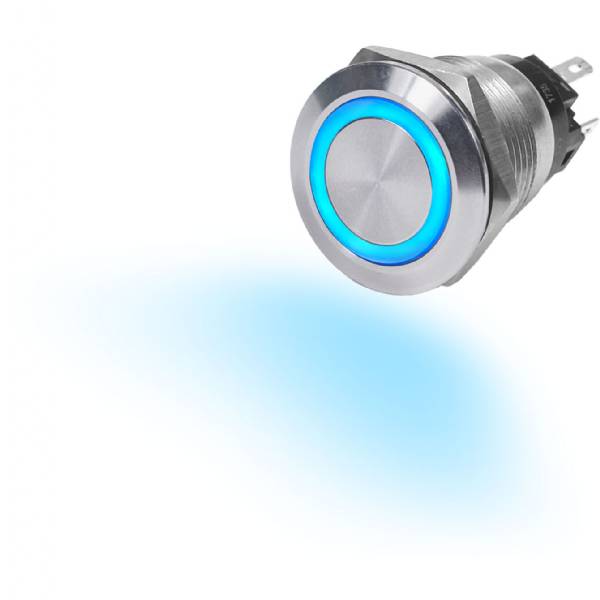

Blue Sea 10A Push Button LED Ring Switch Off-(On) Blue- Momentary On
Model: 4161-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
| Action | OFF-(ON)- Momentary One |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -55 deg C |
| Maximum Storage Temperature | 85 deg C |
| Illumination | Independent - Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | 3/4 in (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 - 0.110inch Quick Connect terminals |
Shipping weight: 0.2 lb
