BLUE SEA

5015 ST Glass 6 Circuit Fuse Block with Negative Bus and Cover

Manufacturer part #: 5015-BSS
UPC: 632085050153
Condition: New

$45.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Product details

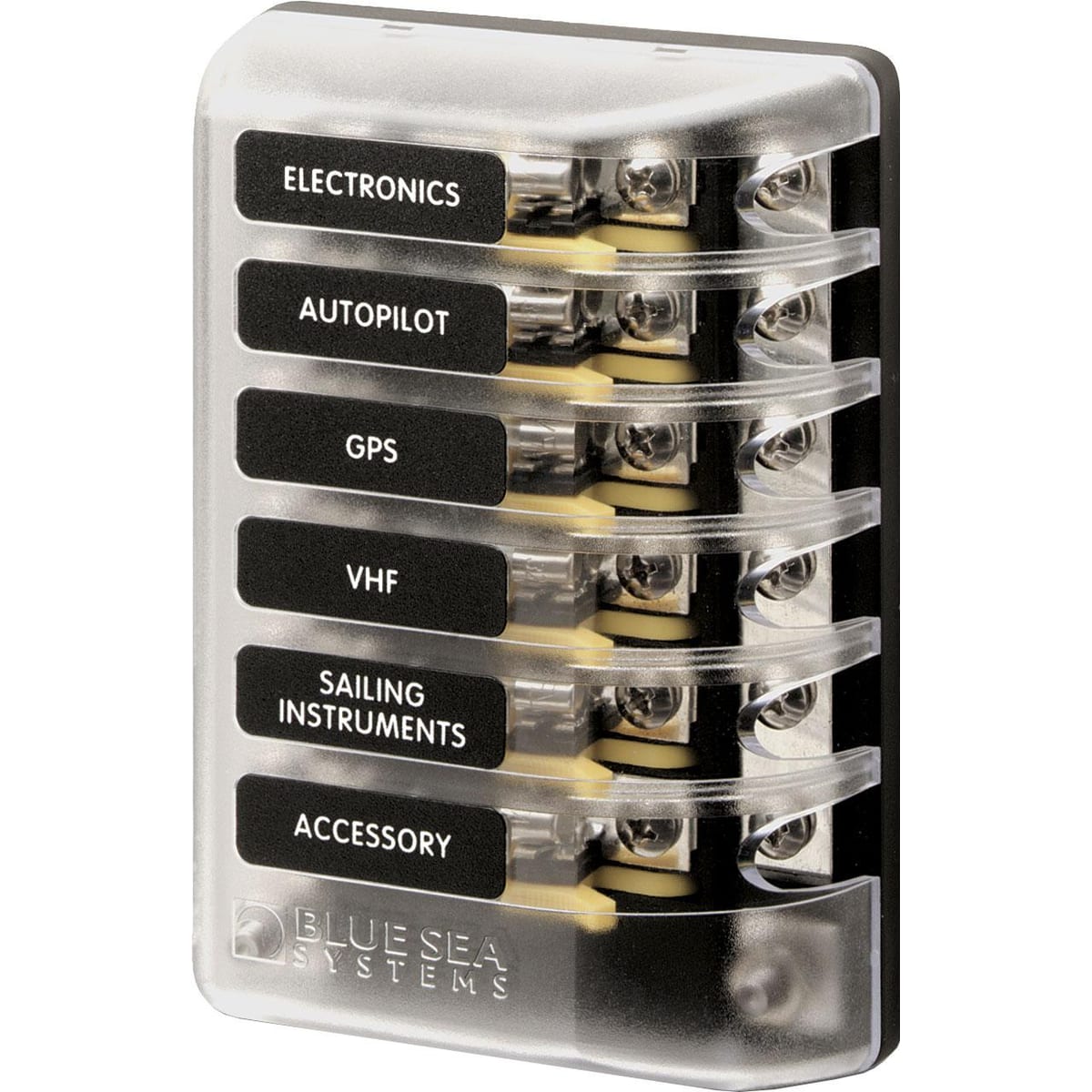

Blue Sea Systems ST Glass 6 Circuit Fuse Block with Negative Bus and Cover
Model: 5015-BSS

Clear insulating cover with label recesses to accept Large Format Labels
Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Innovative design allows for labeling, spare fuse storage, and easy fuse removal.

Specifications

Maximum Amperage	100A per block, 30A per circuit
Maximum Voltage	32V DC
Mounting	#10 Screw
Negative Bus	Yes
Base Material	Reinforced Polycarbonate
Cover Material	Polycarbonate
Screw Terminal Type	#8-32 with Captive Star Lockwasher
Weight	0.58 lb (0.26 kg)

Shipping weight: 0.58 lb
