BLUE SEA
5018 ST Glass 6 Circuit Fuse Block with Cover
- Manufacturer part #
- 5018-BSS
- UPC
- 632085050184
- Condition
- New
$38.95
Available for backorder
Expected in our warehouse on Friday, November 6. Estimated to ship by Tuesday, November 10.
Product details

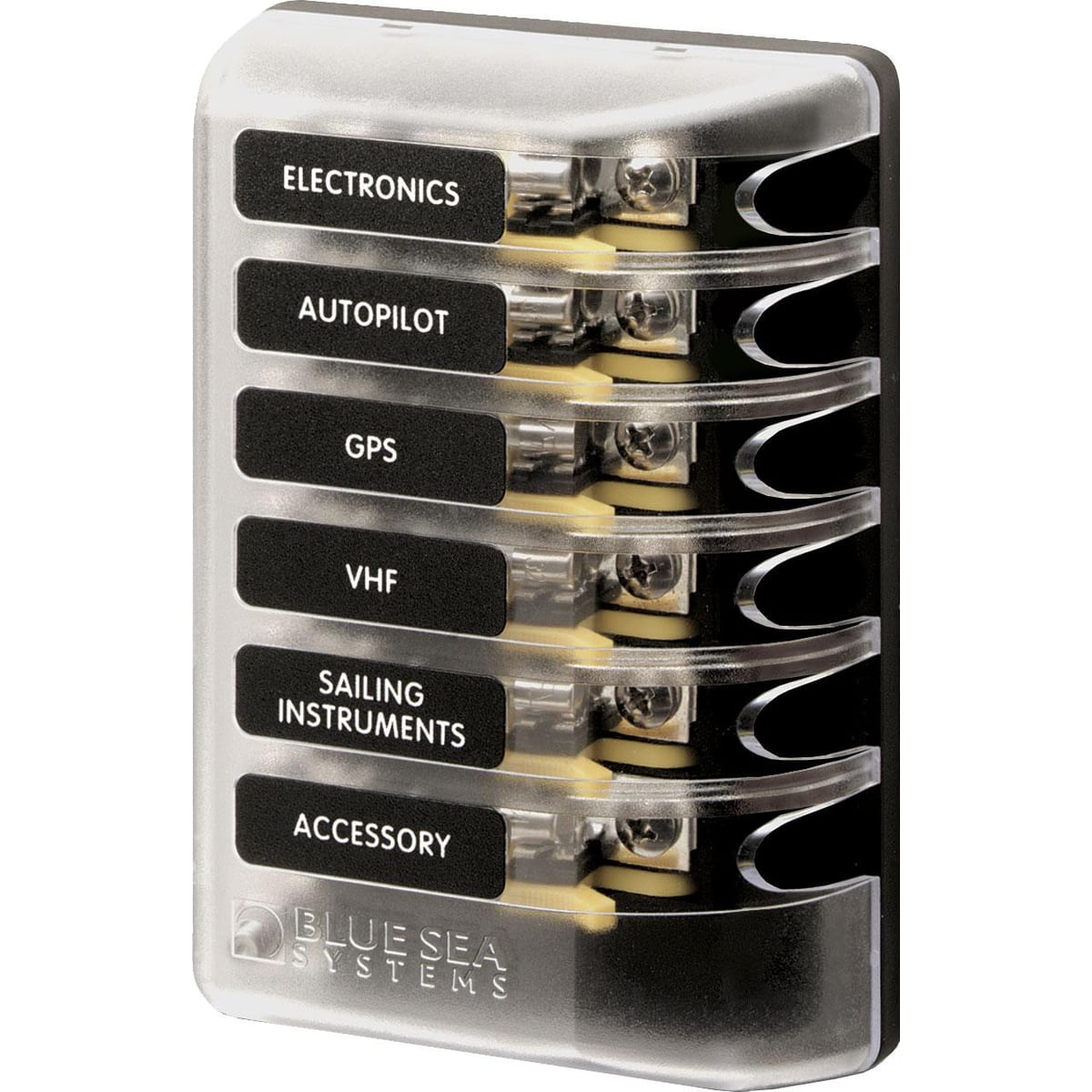

Blue Sea Systems ST Glass 6 Circuit Fuse Block with Cover
Model: 5018-BSS
Specifications
Model: 5018-BSS
- Clear insulating cover with label recesses to accept Large Format Labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
- Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Innovative design allows for labeling, spare fuse storage, and easy fuse removal.
Specifications
| Maximum Amperage | 100A per block, 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #10 Screw |
| Base Material | Reinforced Polycarbonate |
| Cover Material | Polycarbonate |
| Screw Terminal Type | #8-32 with Captive Star Lockwasher |
| Weight | 0.48 lb (0.22 kg) |
Shipping weight: 0.48 lb
