BLUE SEA
5031 ST Blade Fuse Block - 12 Circuits with Negative Bus
- Manufacturer part #
- 5031-BSS
- UPC
- 632085050313
- Condition
- New
$59.95
Available for backorder
Expected in our warehouse on Friday, November 6. Estimated to ship by Tuesday, November 10.
Product details

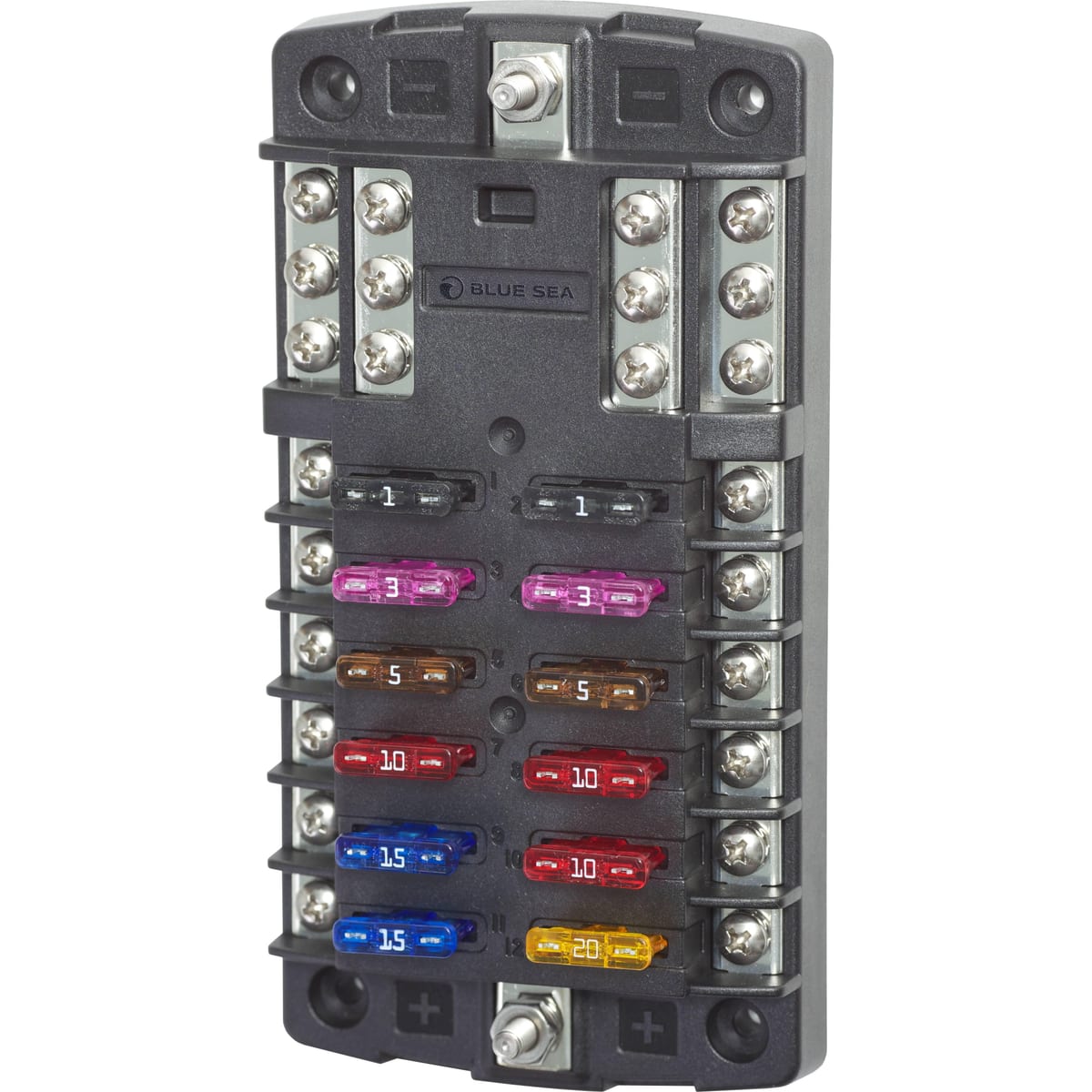

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus
Model: 5031-BSS
Specifications
Model: 5031-BSS
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Consolidates branch circuits and in-line fuses.
Specifications
| Circuits | 12 |
| Maximum Amperage | 100A per block, 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.65 lb (0.29 kg) |
Shipping weight: 0.65 lb
