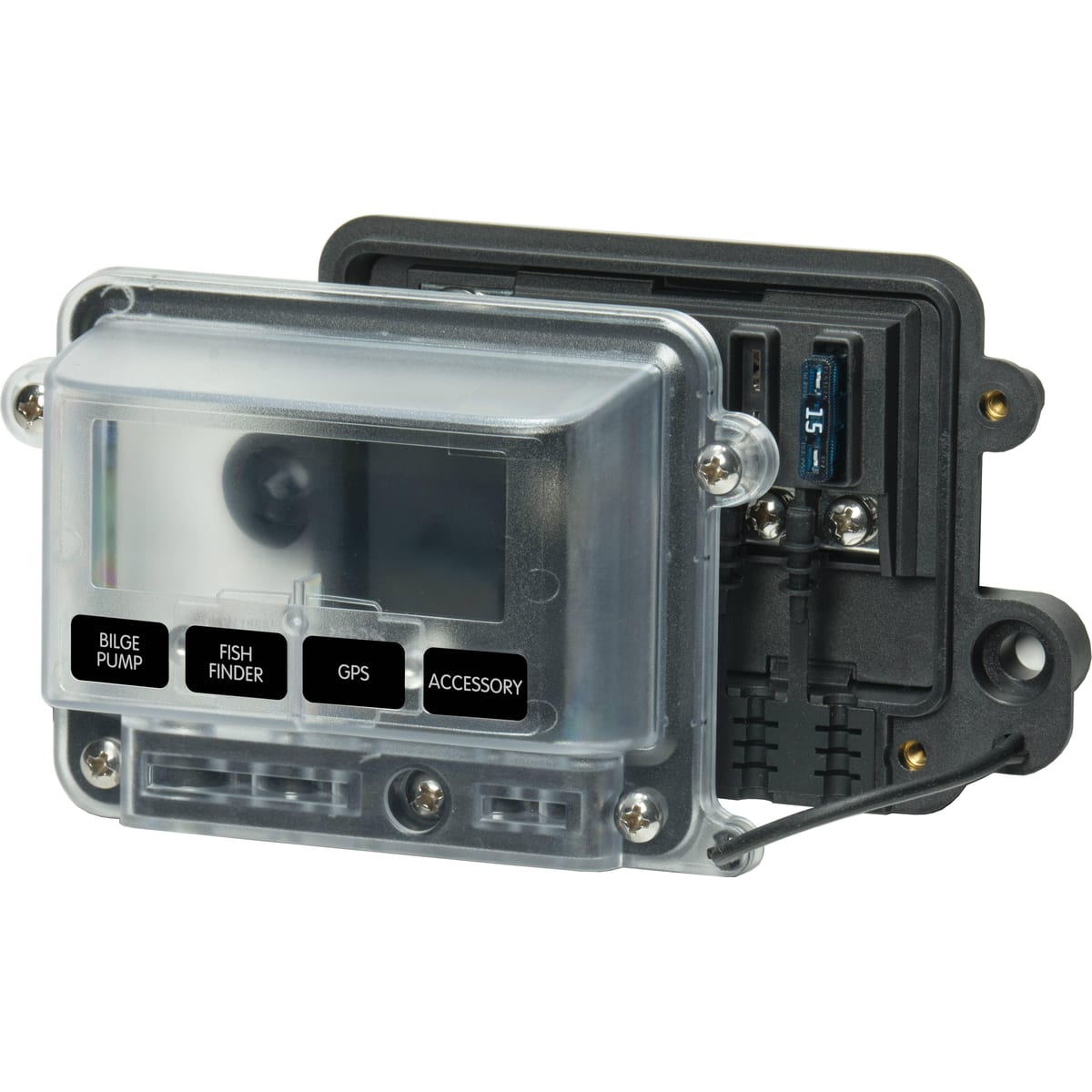

5056 ST-Blade Water-Resistant Fuse Block 4 Circuit

Blue Sea Systems ST-Blade Water-Resistant Fuse Block
Model: 5056-BSS

• Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast-acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Spare fuse and fastener storage in cover
• Fuses and circuit breakers sold separately

Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.

Specifications

Amperage	80A per block, 25A per circuit
Maximum Voltage	32V DC
Bus Material	Tin-Plated Copper C11000
Mounting Holes	Clearance for 1/4 in (6mm) screws
Screw Terminal Type	#8-32 Screws with captive star lock washer
Wire Size	(1) 8 AWG to 4 AWG - Input, (4) 16 AWG to 10 AWG - Load
Ingress Protection	IP66
