BLUE SEA
7210 Circuit Breaker AA1Toggle 15A with White Toggle
- Manufacturer part #
- 7210-BSS
- UPC
- 632085072100
- Condition
- New
$22.95
In stock
Estimated to ship by Monday, October 19.
Product details

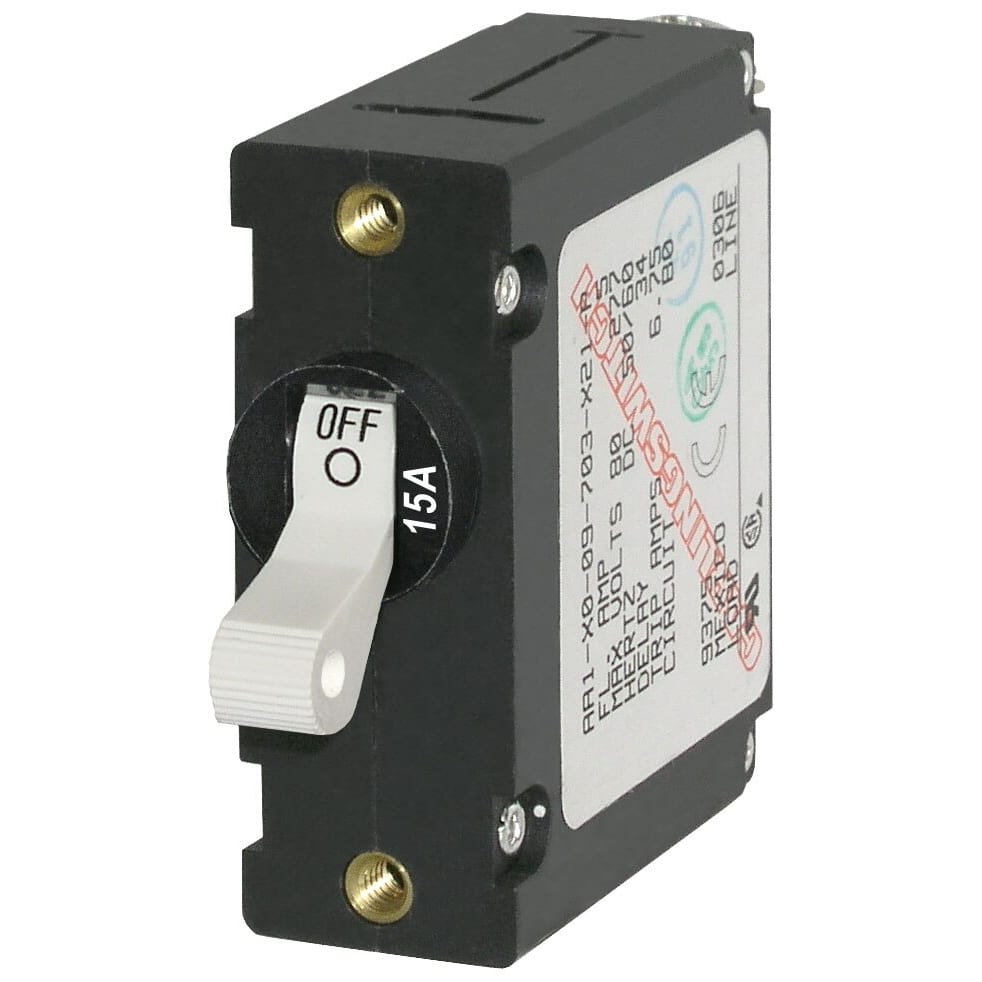

Blue Sea 7210 Circuit Breaker AA1Toggle 15A with White Toggle
Model: 7210-BSS
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications
| Amperage | 15AC 15A DC |
| Color | White |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steelc |
Shipping weight: 0.17 lb
