BLUE SEA

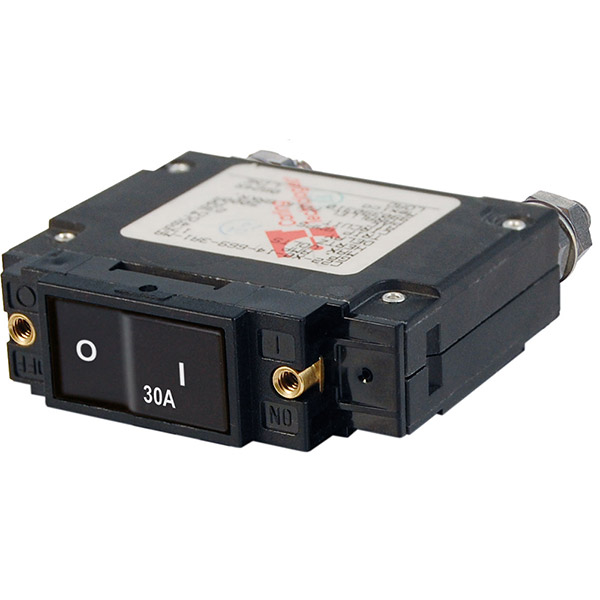

7545 C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

Manufacturer part #: 7545
UPC: 032085075453
Condition: New

$49.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Product details

C-Series Flat Rocker Circuit Breaker - Single Pole - 30A

Features:

Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
Color actuator indicates "OFF" position
Provides overcurrent protection for inverters, bow thrusters, and windlasses
Combines switching and circuit protection into a single device
"Trip Free" - cannot be held closed after trip
Ignition protectedsafe for installation aboard gasoline powered boats

Specifications:

Amperage: 30A AC / 30A DC
Actuator Style: Flat Rocker
Poles: 1
Maximum Voltage: 240V AC / 48V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Terminal Stud Torque: 35 in-lb (3.95 Nm)
Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Switching Cycles: 10000
Terminal Stud: 1/4-20 Tin-Plated Brass
Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

Amperage

30A AC/DC
