BLUE SEA

8054 Slate Grey - 3 Position - Vertical

Manufacturer part #: 8054
UPC: 632085080549
Condition: New

$112.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

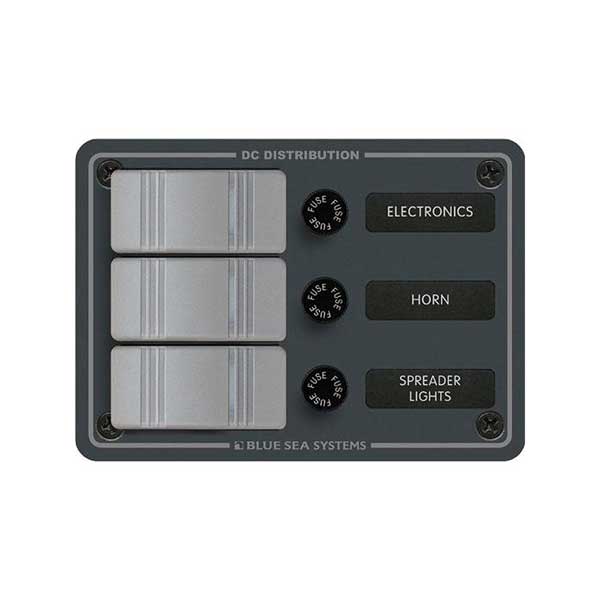

8054 Slate Grey - 3 Position - Vertical

Features:

Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
Designed for flybridge and open cockpit applications
ON-OFF Contura Switches
ON indicating LEDs embedded in switches
Watertight mounting gasket included
Countersunk mounting holes throughout
Two-part polyurethane slate gray finish
Industry standard height and width
Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
Completely wired and ready to install

Specifications:

Weatherproof: Water Resistant
Positions: 3
Nominal Voltage: 12v / 24v DC
Panel Cumulative Rating: 45A
Switch Rating: 20A @ 12v DC / 15A @ 24v DC
Height: 3.75"
Width: 5.25"
Depth: 3"

Included:

(3) 5021 Panel Mount AGC/MDL Fuse Holder
(1) 8030 Basic DC Panel Label Set - 30 Labels
(3) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Shipping weight: 0.7 lb
