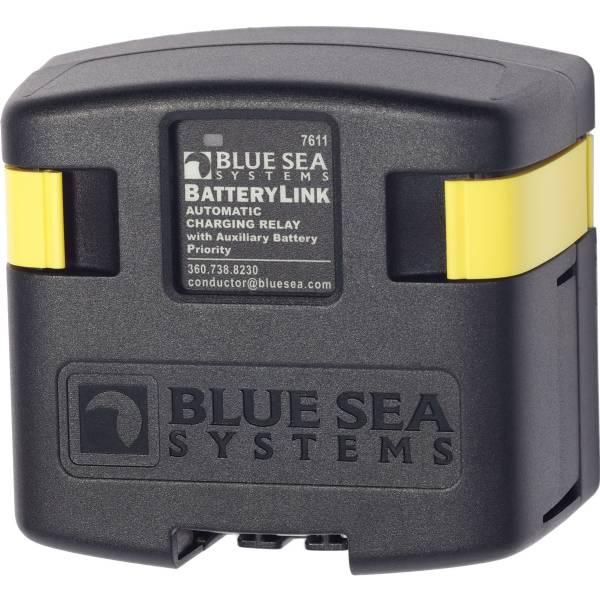

BatteryLink Automatic Charging Relay 12/24vDC 120A

Blue Sea Systems BatteryLinkTM Automatic Charging Relay - 12V/24V DC 120A

Model: 7611-BSS

• 120 Amp continuous rating
• 12/24V DC auto ranging voltage input
• Senses charging on two battery banks
• Side and bottom knockouts for cable connections
• Clip-on cover insulates terminal connections
• 7/8 (22 mm) stud length to accept multiple cable terminals
• Integrated LED indicates ACR status
• 1/4 in × .032 in male quick connect terminals for ground and optional features
• Largest battery bank cannot exceed Group 27

Automatically shares single source of charge with Auxiliary Battery

Specifications

Nominal Voltage

12V DC
