BLUE SEA

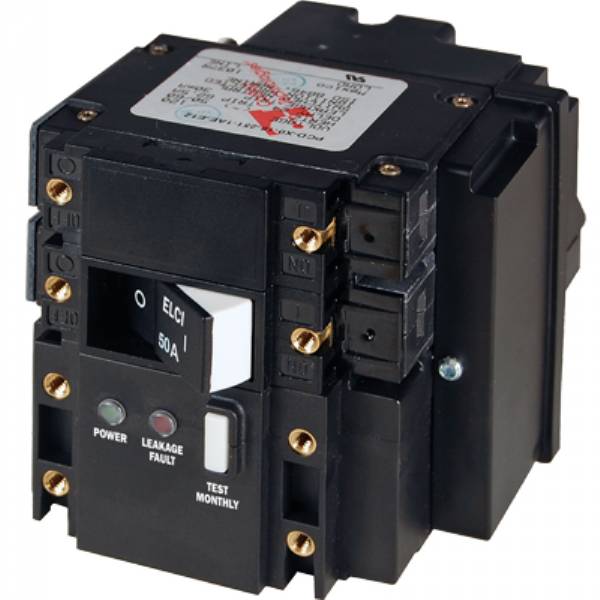

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
- Manufacturer part #
- 3103
- UPC
- 032085031039
- Condition
- New
$471.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
Shipping weight: 0.9 lb
