BLUE SEA

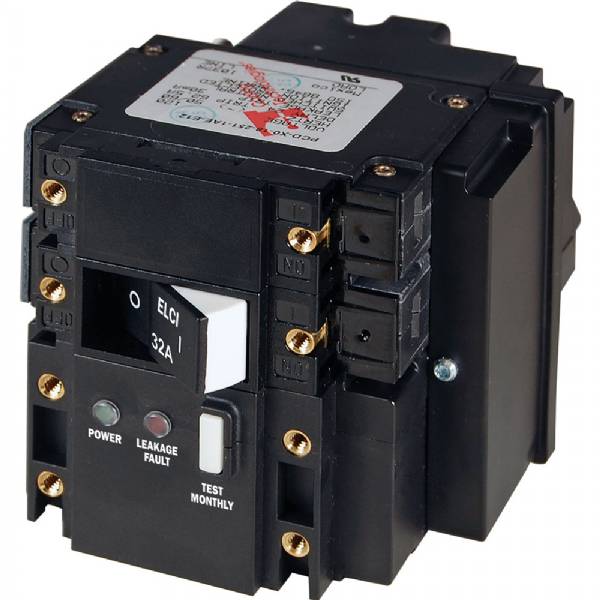

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A
- Manufacturer part #
- 3092
- UPC
- 632085030926
- Condition
- New
$567.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 32A
- Actuator Style: Flat actuator
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Maximum Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 1.05 lbs (0.48kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Shipping weight: 1.2 lb
