C-Series Flat Rocker Circuit Breaker Double Pole 100A AC

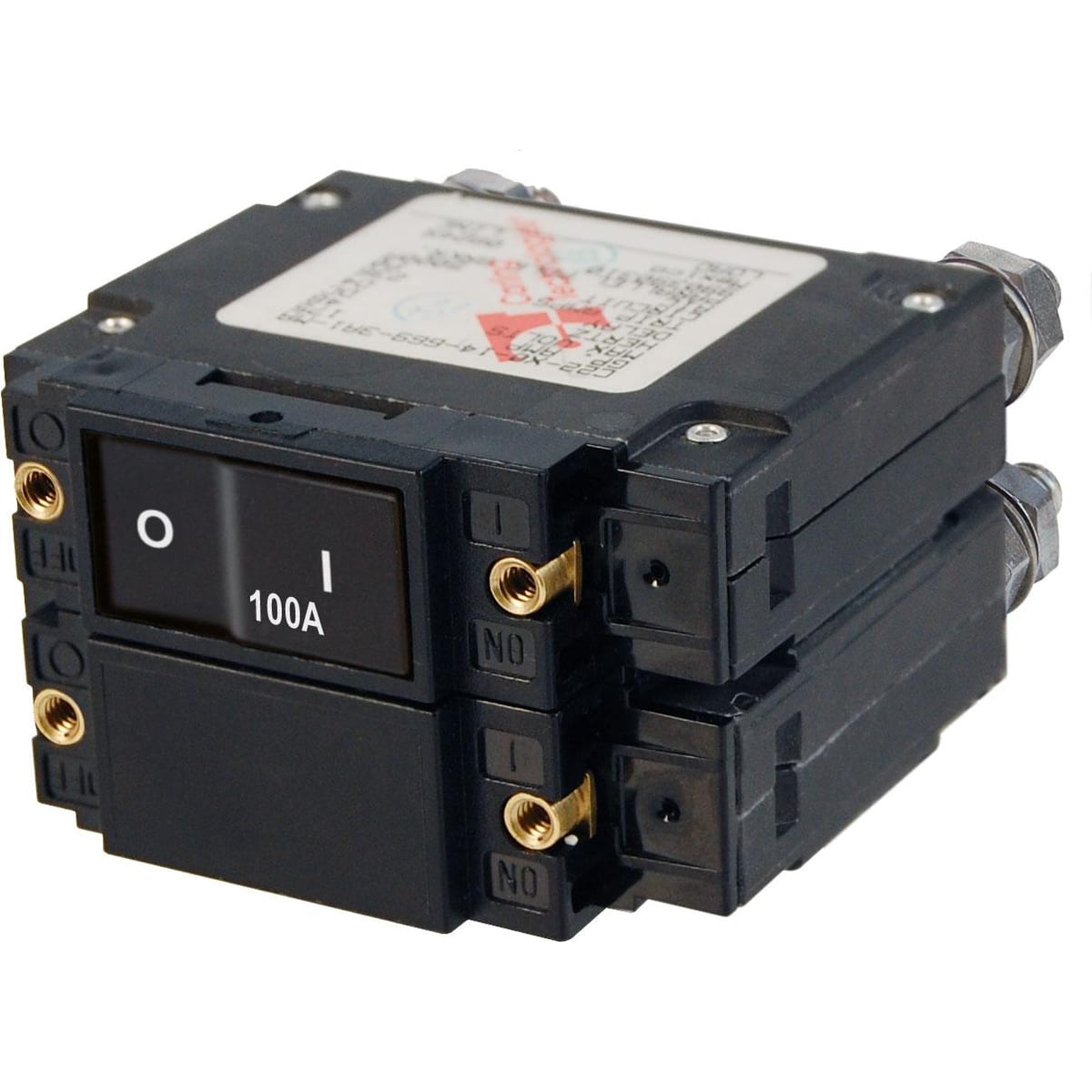

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Double Pole 100A AC

Model: 7564-BSS

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt main protection
• Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
• Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
• Circuit breakers will trip all poles if any one pole trips
• "Trip Free" design cannot be held "ON" during fault current condition

Specifications

Amperage	100A AC
Actuator Style	Flat Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Terminal Stud	1/4-20 Tin-Plated Brass
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	5000A @ 48V DC
Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Mounting Screw	6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.64lb (0.29 kg)
