E-Series Battery Switch 1-Off-2-Both

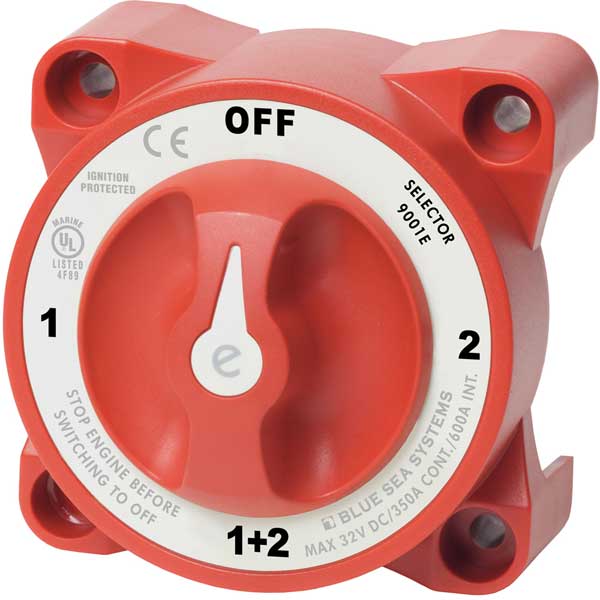

Blue Sea Systems e-Series Selector Battery Switch

Model: 9001E-BSS

• 350 Amps continuous rating for inboard gasoline or diesel engines.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG battery cables
• Studs accepts 3/8 (M10) ring terminals
• 7/8 in (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Fits most Perko and Guest low amperage battery switch hole patterns
• Case design allows surface or rear panel mounting
• Tactile indicator conveys knob position by feel
• Waterproof - rated IP66 from water projected in powerful jets
• Ignition protected-safe for installation aboard gasoline powered boats
• Make-before-break contact design allows switching without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

Specifications

Switch Type	Selector 4 Position
Color	Red
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	350A
Intermittent Rating	600A (5 min)
Cranking Rating 30 sec	1200A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm2)
Mounting Holes	Accept 1/4 in (M6) Screw
Stud Material	Tinned Copper
Terminal Stud Size	3/8 in - 16 (M10)

"
