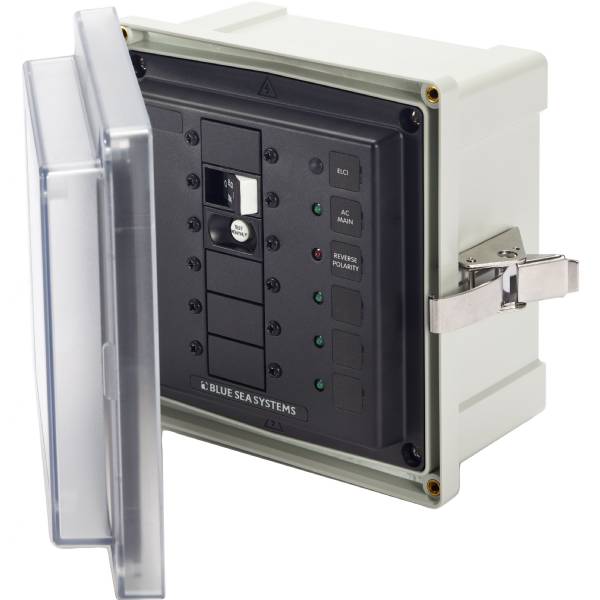

Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions

Model: 3116-BSS

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Glass filled polycarbonate mounting box
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0 x 6.0 in x 4.0 in
Exterior Overall Dimensions	7.6 in x 7.4 in x 4.7 in
Mounting Hardware	1/4 in Diameter
