Panel Enclosure Dual 120v AC 30A ELCI Main Surface Mount System

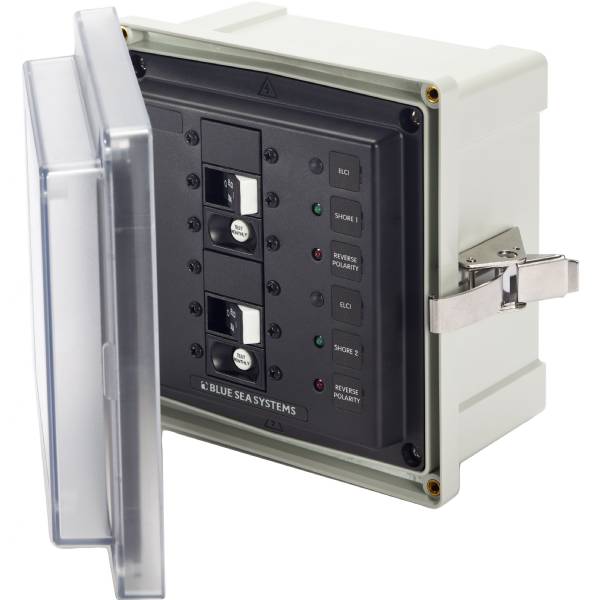

Blue Sea SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Model: 3117-BSS

• Includes one Dual 120V AC / 30A ELCI Main
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications

Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0 x 6.0 in x 4.0 in (152mm x 152mm x 102mm)
Exterior Overall Dimensions	7.6 in x 7.4 in x 4.7 in (192mm x 188mm x 120mm)
Mounting Hardware	1/4 in Diameter
