BLUE SEA
Rotary Switch 120VAC 30 Amp Off + 2 Position
- Manufacturer part #
- 9009-BSS
- UPC
- 632085090098
- Condition
- New
$113.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details

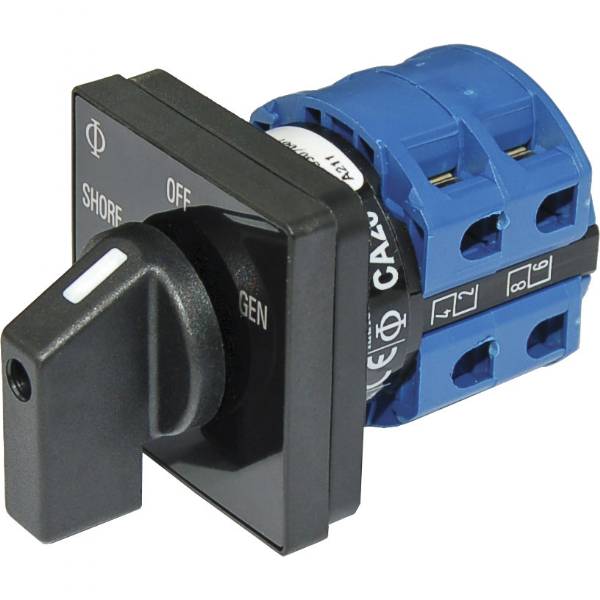

Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 120V AC 30A
Model: 9009-BSS- Switches 2 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16 (4.00mm) thick
- Mounts in panels up to 0.16 in (4.00mm) thick
- Intuitive function - One hand operation
- UL listed
| Positions | 2 + OFF |
| Source Selection | 2 |
| Nominal Voltage | 120v |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. | 30A |
| Maximum Voltage | 600V AC |
| Source In | 2 |
| Dimensions hxwhd | 1.89in x 1.89in x 1.91in |
Shipping weight: 0.7 lb
