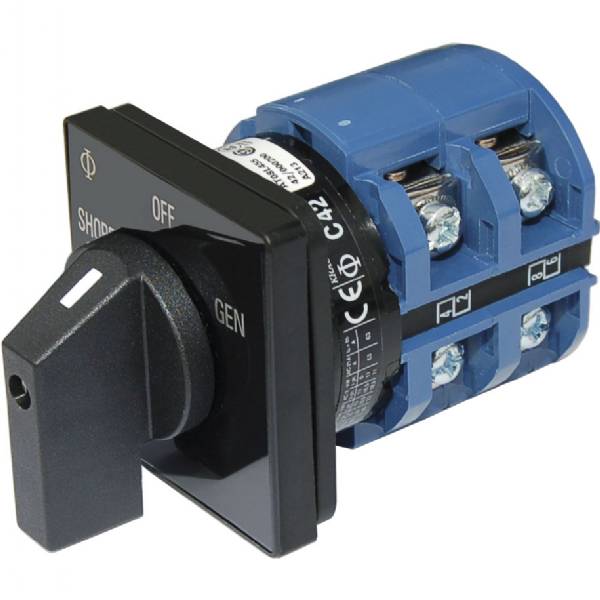

Rotary Switch 120VAC 65 Amp Off + 2 Position

Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 120V AC 65A

Model: 9011-BSS

• Switches 2 - 120 or 230 Volt AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two different AC sources to one circuit
• Mounts in panels up to 0.16 (4.00mm) thick
• Heavy duty industrial rated switch
• Intuitive function - One hand operation
• UL listed

Specifications

Positions	2 + OFF
Source Selection	2
Nominal Voltage	120v
Poles	2
Load Circuits Out	1
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.	65A
Maximum Voltage	600V AC
Source In	2
Dimensions hxwhd	2.52in x 2.52in x 2.41in

"
