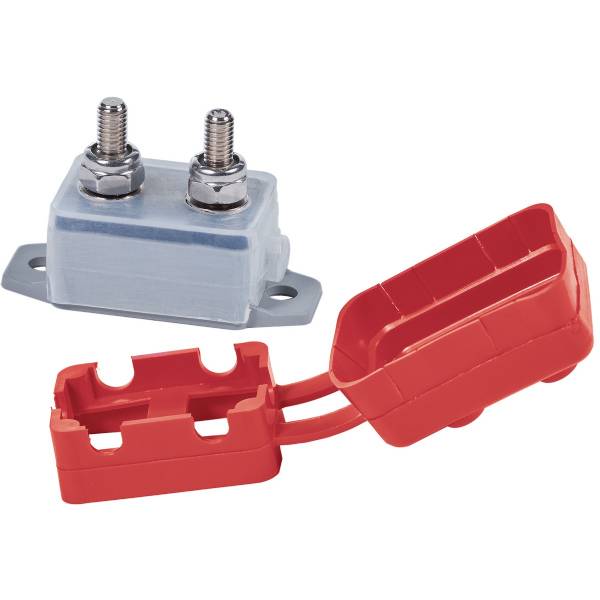

Short Stop 20 Amp Circuit Breaker Marine Grade

Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 20A

Model: 7153-BSS

• Corrosion resistant materials to withstand harsh environments
• IP64 water resistant boot protects against dust and splashing water
• Push-to-reset operation only disconnects when tripped
• Stainless steel lock nuts for secure connections
• Red insulating boot included (retail product only)

Specifications

Amperage	20A DC
Maximum Voltage	28vDC
Circuit Breaker Type	Thermal trip, manual reset
Terminal Stud	#10-32
Terminal Stud Torque	20 in-lb (2.26 Nm)
Interrupt Capacity	2500A @ 28V DC
Minimum Operating Temperature	-10 deg C
Maximum Operating Temperature	60 deg C

What's in the Box:

• 20A Short Stop Circuit Breaker
• Short Stop Circuit Breaker Boot
