ST CLB Circuit Breaker Block - 6 position with Negative Bus

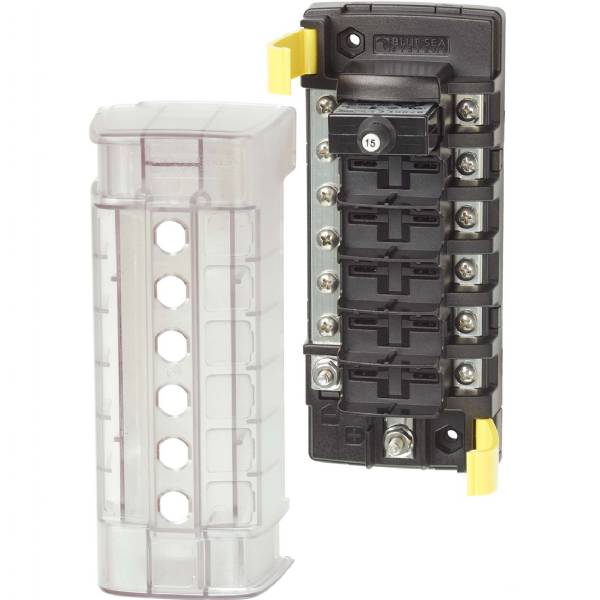

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Model: 5052-BSS

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover
• Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Specifications

Circuits	6
Maximum Amperage	100A (per block) 32A (per circuit)
Maximum Voltage	32V DC
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Source	Common Source
Minimum Operating Temperature	-10 deg C
Maximum Operating Temperature	60 deg C
Mounting Centers	5.63in (143 mm)
