19mm Electronic 80W PWM Dimmer Switch, Blue/Red LED

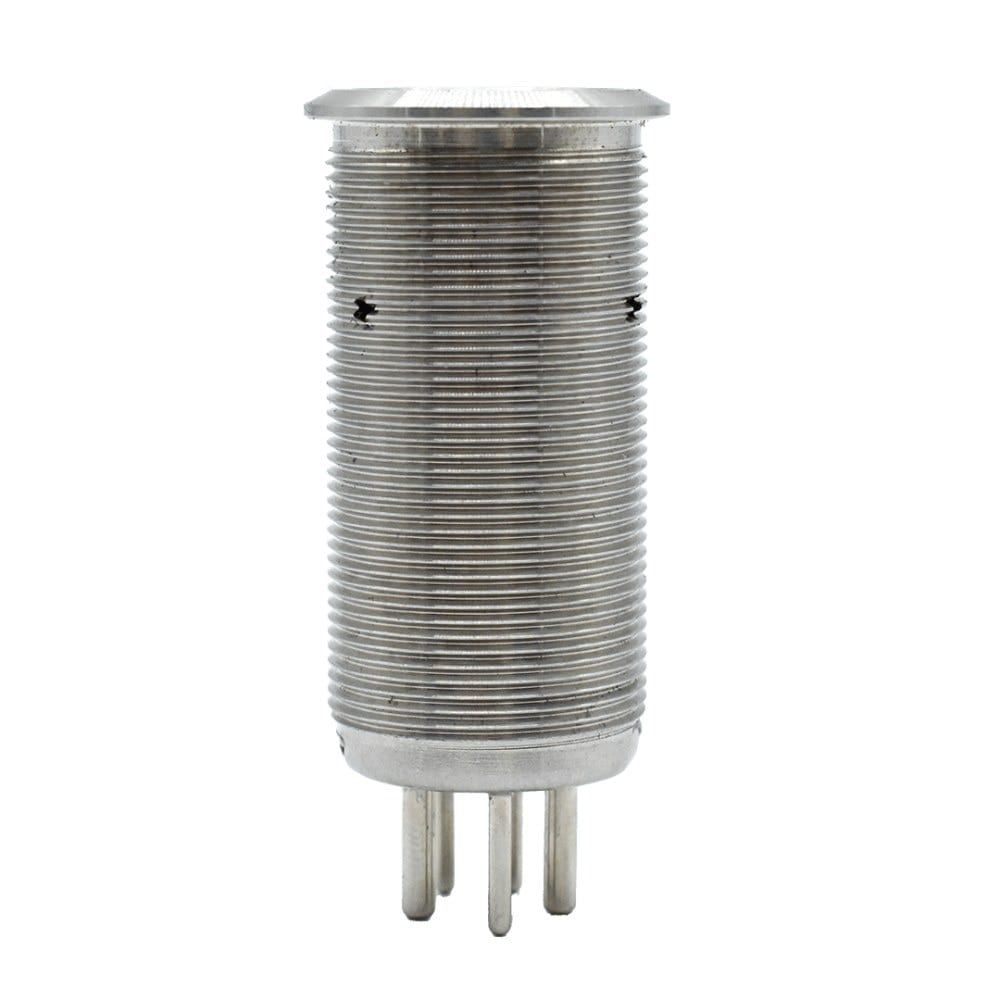

Bluewater 19mm Electronic 80W PWM Dimmer Switch, Blue/Red LED

Model: 9057-3116

• Push-Button Dimming — Press and hold to brighten, press and hold again to dim, and press once to turn lights off.
• Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-3116 is a 19mm PWM dimmer switch for cabin, cockpit and accent lighting, with a blue backlight when off and red when the lights are on.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	PWM dimmer
LED Indicators	Blue off / Red on
Max Load	80W
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)
