19mm Electronic Double Momentary Switch, Off-(On)-(On), Green/Blue/Red LED

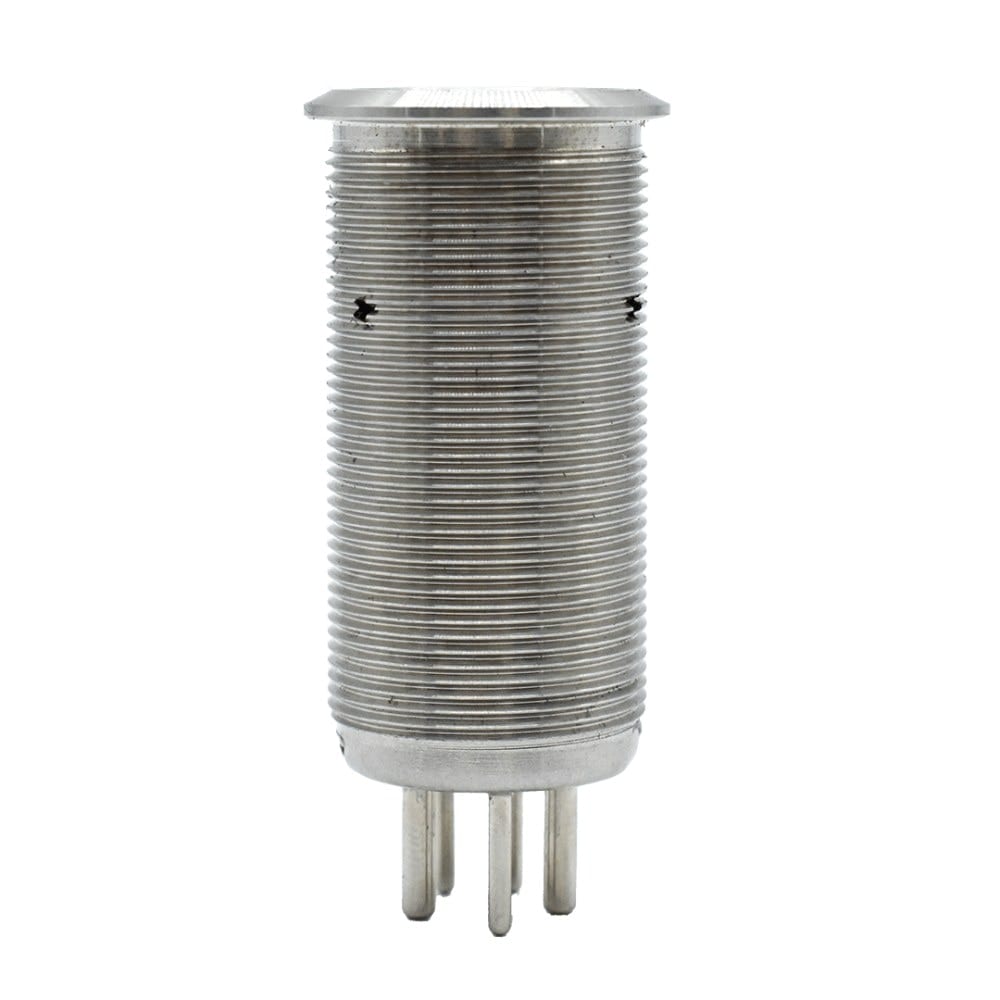

Bluewater 19mm Electronic Double Momentary Switch, Off-(On)-(On), Green/Blue/Red LED

Model: 9057-2223

• Double Momentary — Two momentary outputs in one switch for up/down or in/out control such as trim tabs, jack plates and windlasses.
• Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-2223 puts two momentary channels in one compact 19mm switch, with a green backlight and blue or red indication for each active output.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	Off-(On)-(On) double momentary (dual channel)
LED Indicators	Green off / Blue 1st on / Red 2nd on
Voltage/Current	7.5A per channel @ 12–24VDC
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)
