19mm Electronic Ground Switch, Latching On/Off

Bluewater 19mm Electronic Ground Switch, Latching On/Off

Model: 9057-1173

• Ground Switching — Latching On/Off switch that controls the ground (negative) side of the circuit.
• Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

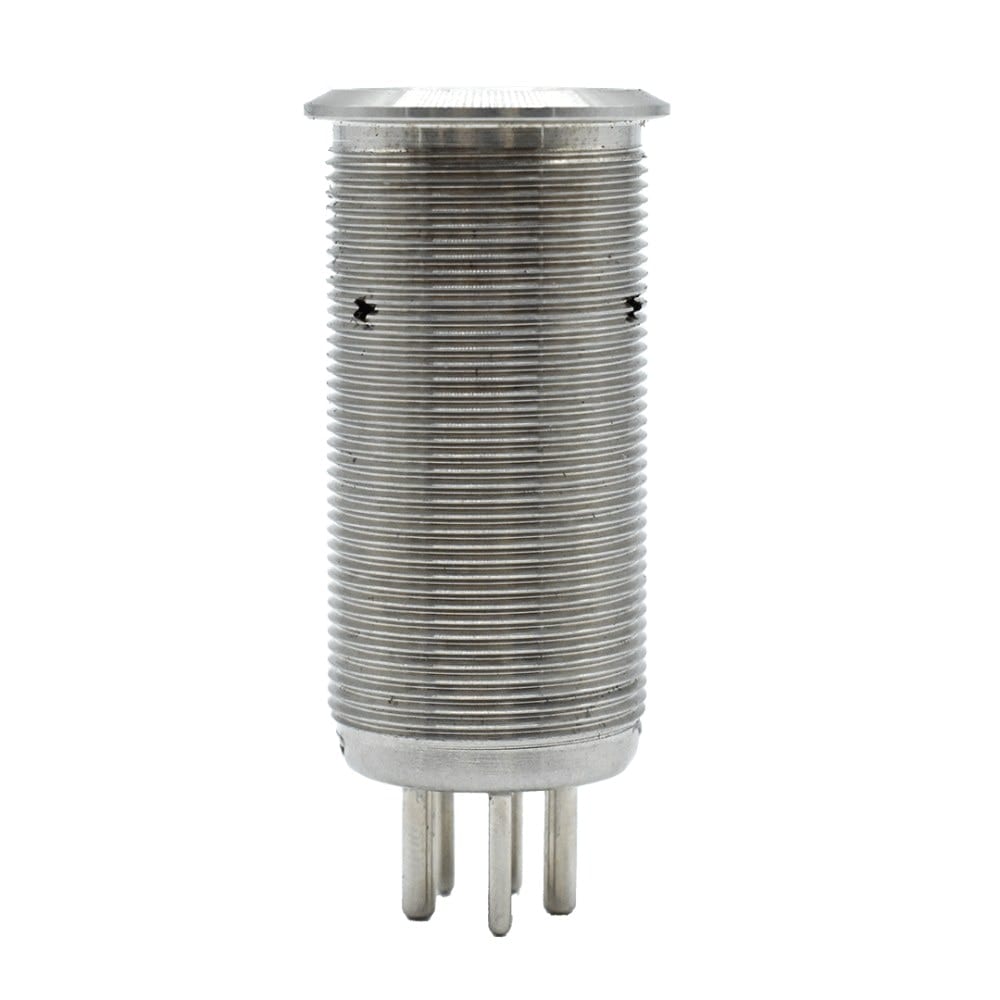

The Bluewater 9057-1173 is a 19mm electronic ground switch with latching On/Off operation, for circuits where the negative side is switched.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	Ground (negative-side) switching, latching On/Off
Voltage	12–24VDC
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)
