19mm Electronic Momentary Horn Switch, Red LED

Bluewater 19mm Electronic Momentary Horn Switch, Red LED

Model: 9057-2213

• Horn Switch — Momentary action sounds the horn only while pressed.
• Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

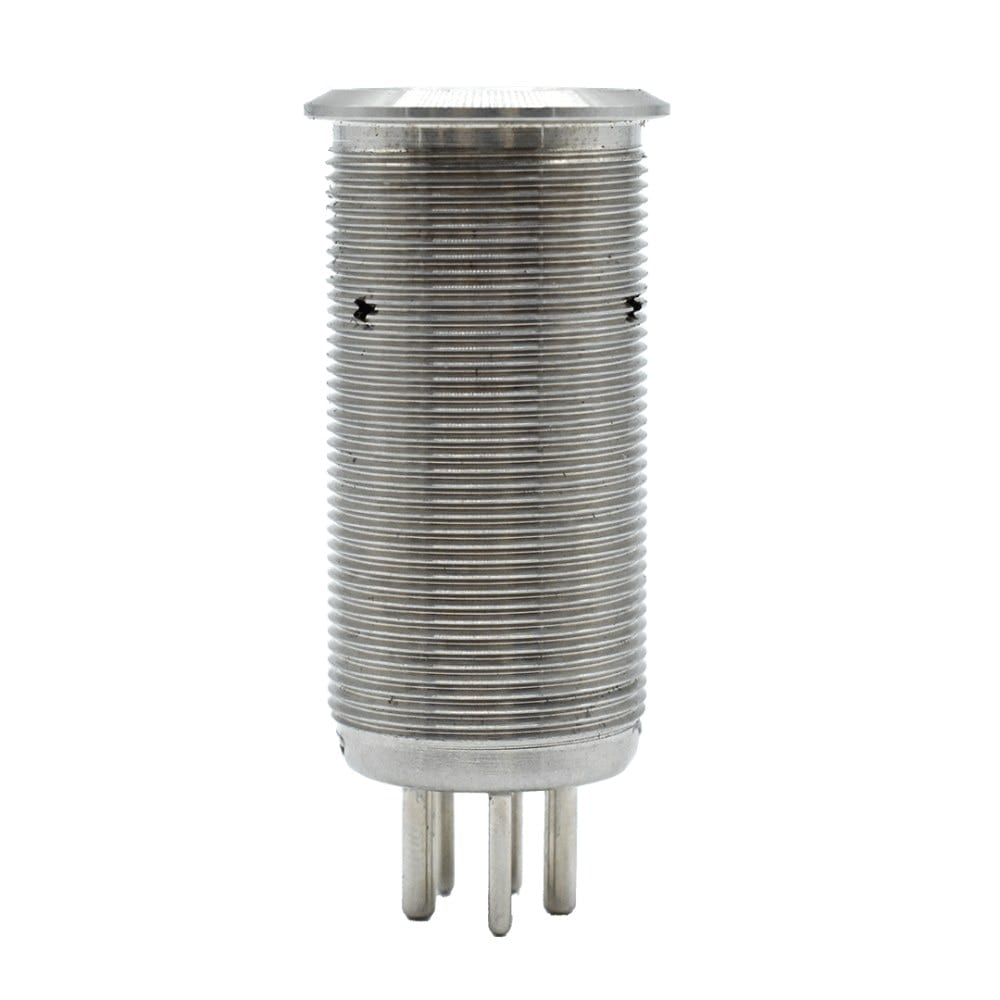

The Bluewater 9057-2213 is a 19mm momentary switch dedicated to horn circuits, with red LED indication.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	Off-(On) momentary horn switch
LED Indicators	Red
Voltage/Current	15A @ 12–24VDC
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)
