19mm Mechanical Push Button Switch, On/Off, Translucent Blue Lit Face, 5A

Bluewater 19mm Mechanical Push Button Switch, On/Off, Translucent Blue Lit Face, 5A

Model: 9150-1100

• Latching On/Off — Push once for on, push again for off.
• Fully Translucent Face — Illuminated lens lights the entire button for easy visibility at night.
• LED Feedback — Blue illumination when inactive, switching to red when the circuit is active.
• Stainless Steel Body — Corrosion-resistant construction for marine use.
• IP67 Waterproof — Sealed design with integrated gasket for wet marine environments.

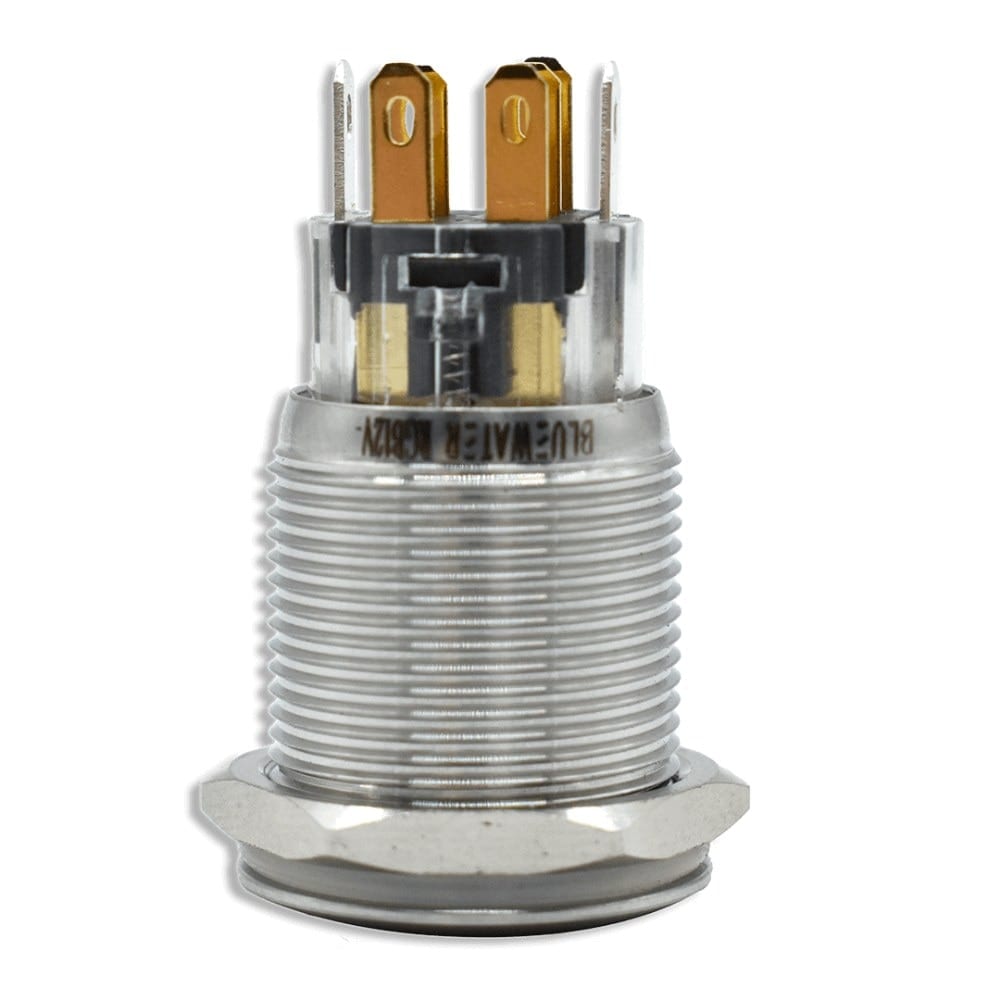

The Bluewater 9150-1100 is a 19mm mechanical on/off push button switch with a fully illuminated translucent face.

Bluewater 19mm mechanical push button switches are low-profile, marine-grade switches built for tight dashboards and panels on boats, RVs and vehicles.

Installation: Drill a 19mm hole in material up to 6mm thick.

Specifications

Function	On/Off (latching)
Face Style	Fully translucent, illuminated
Current Rating	5A
LED Indicators	Blue inactive / Red active
Protection Rating	IP67
Material	Nickel-plated brass / stainless steel
Mechanical Life	500,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	19mm, material up to 6mm thick
