19mm Pre-Wired Mechanical Push Button Switch, Momentary, Translucent Blue Ring, 6" Leads

Bluewater 19mm Pre-Wired Mechanical Push Button Switch, Momentary, Translucent Blue Ring, 6" Leads

Model: 9150-2100-506

• Momentary Action — Circuit stays on only while the button is held.
• Illuminated Ring — Translucent blue LED ring around the actuator for clear status at a glance.
• LED Feedback — Blue illumination when inactive, switching to red when the circuit is active.
• Pre-Wired & Epoxy Sealed — Factory-sealed 5-wire harness with 6-inch leads for plug-and-play installation.
• IP67 Waterproof — Sealed design with integrated gasket for wet marine environments.

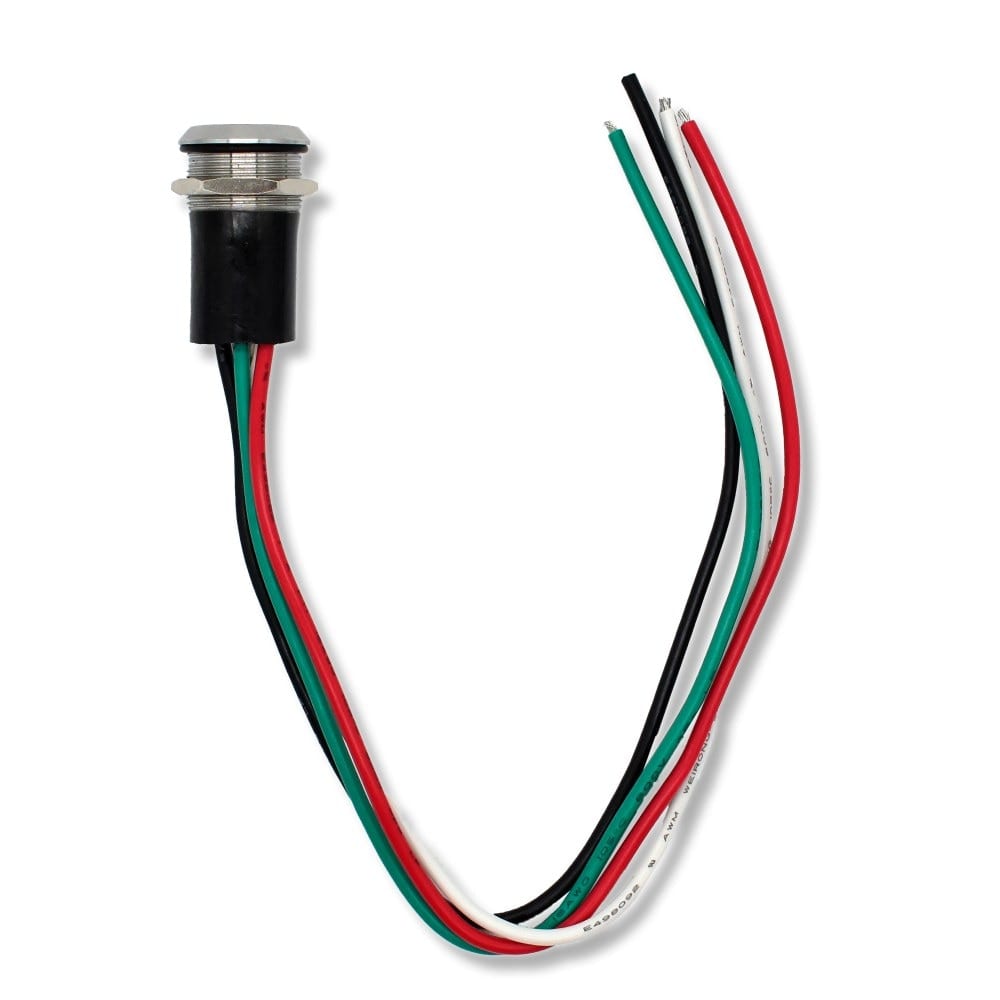

The Bluewater 9150-2100-506 is a 19mm pre-wired mechanical momentary push button switch with a translucent blue illuminated ring.

Bluewater 19mm mechanical push button switches are low-profile, marine-grade switches built for tight dashboards and panels on boats, RVs and vehicles.

Installation: Drill a 19mm hole in material up to 6mm thick. Color-coded leads simplify wiring.

Specifications

Function	(On)/Off momentary
Face Style	Metal actuator with translucent blue LED ring
Switch Rating	10A @ 12VDC
LED Indicators	Blue inactive / Red active
Wiring	5-wire, epoxy-sealed, 6 in. leads
Protection Rating	IP67
Material	Nickel-plated brass / stainless steel
Mechanical Life	500,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	19mm, material up to 6mm thick
