BLUEWATER

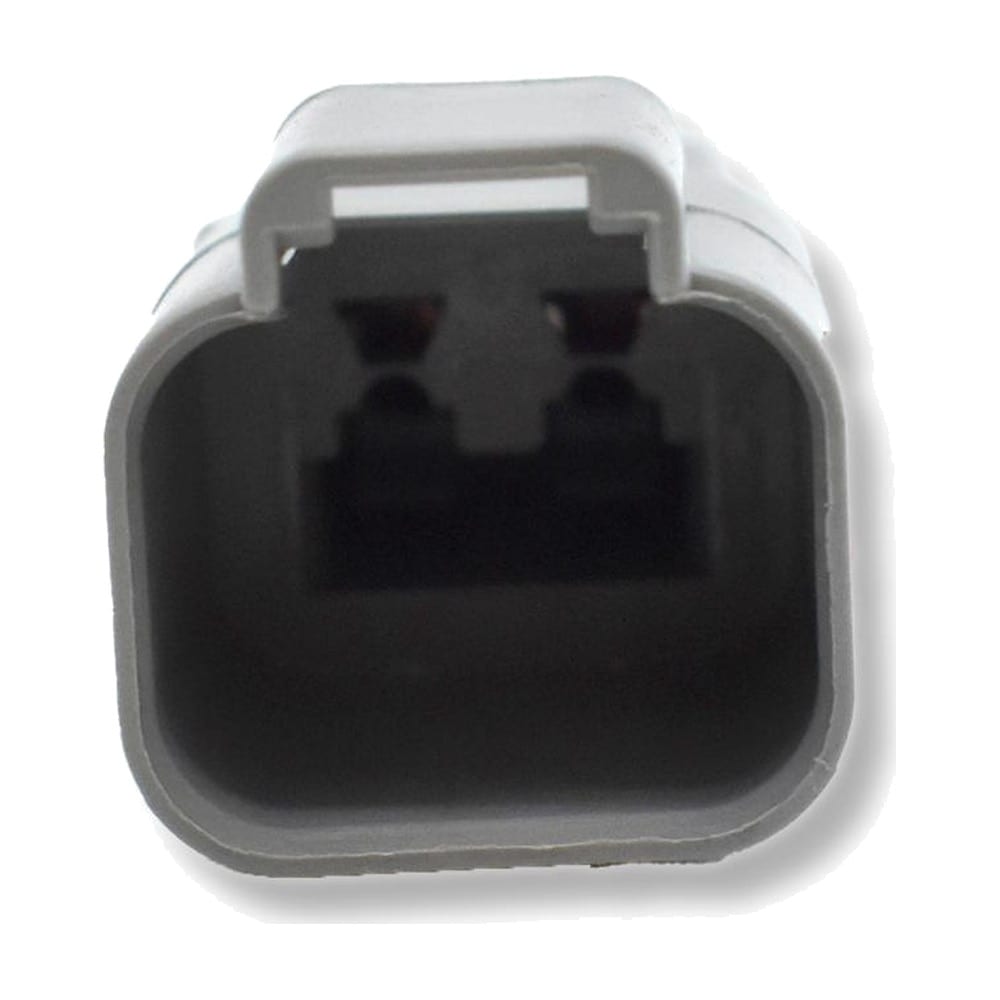

2 Position DT Male Connector with Wedge Lock, Deutsch Compatible
- Manufacturer part #
- DT04-2P
- UPC
- 810196333413
- Condition
- New
$1.10
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details
Bluewater 2 Position DT Male Connector with Wedge Lock, Deutsch Compatible
Model: DT04-2P- 2-Cavity DT Receptacle — Male half of a 2-position DT connection; mates with the DT06-2S female plug.
- Deutsch Compatible — Fully interchangeable with matching Deutsch DT parts.
- 13A Per Contact — Delivers up to 13 amps continuously.
- Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
- Harsh-Environment Build — Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.
The Bluewater DT04-2P is a 2-position DT series male connector that forms a secure, weather-resistant connection with the matching DT06-2S female connector.
It's ideal for marine, automotive and industrial wiring applications.
Specifications| Series | DT (Deutsch compatible) |
| Positions | 2 |
| Gender | Male (receptacle) |
| Mates With | DT06-2S |
| Current Rating | 13A continuous per contact |
| Contacts | DT male, 14AWG (solid machined or stamped crimp) |
| Wedge Lock | Included |
