20 Position DTB Busbar Dual 5/16" stud

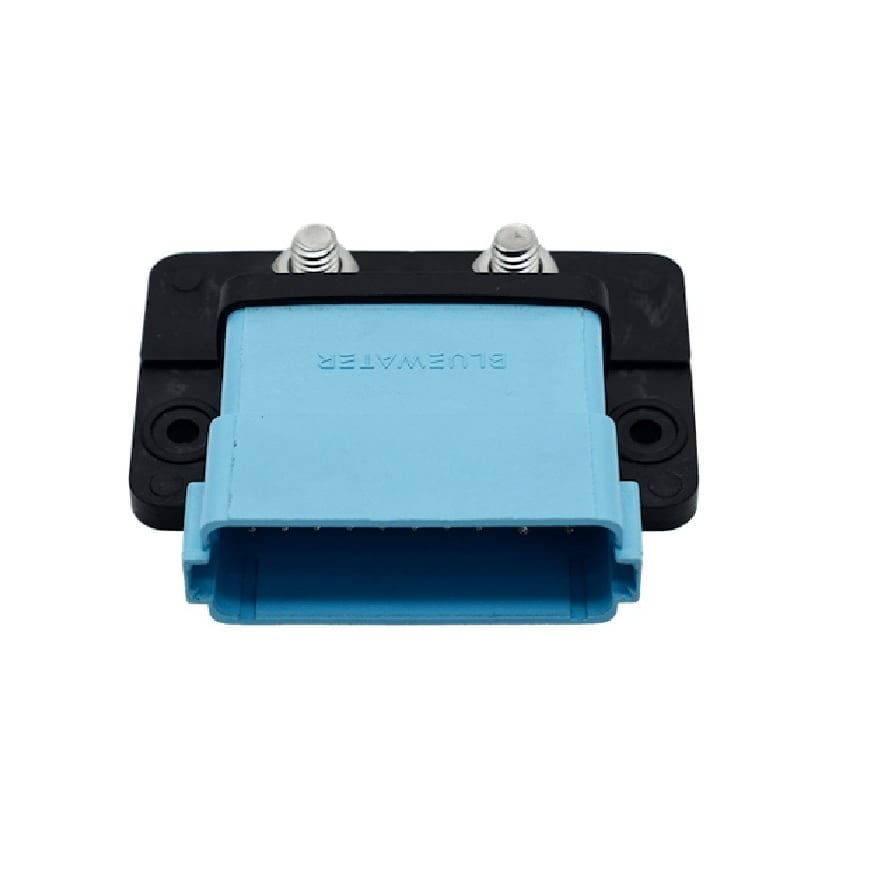

Bluewater 20 Position DTB Busbar Dual 5/16" stud

Model: 2312-D-256

• 20 positions (Male 16DT/4DTP) for versatile connectivity
• Supports wire gauges from 20 AWG to 12 AWG
• 2 mm thick tin-plated copper plate for stable conductivity
• FHS-0518-12 stainless steel studs and 5/16" hardware for durability
• Mates with Female DTB06-20S connector
• Integrated mounting holes simplify installation

Designed for use with Deutsch connectors, this 20-position Deutsch Sealed Busbar delivers a one-of-a-kind solution for high-current, secure electrical connections in demanding environments. Rated at 350A@48V DC, it’s ideal for marine, heavy equipment, and mobile applications where vibration, moisture, and corrosion are concerns.

Compact and easy to install, this deutsch sealed busbar streamlines wiring while protecting critical power circuits in the most challenging applications. Its rugged construction ensures long-term reliability and dependable performance in harsh conditions.

Specifications

Stud Size	5/16"
Mounting Holes	0.20"
Distance Between Mounting Holes	2.87"
Mounting Screw Size (2)	#10, 1/4"
