22mm Electronic Momentary Horn Switch, Red LED

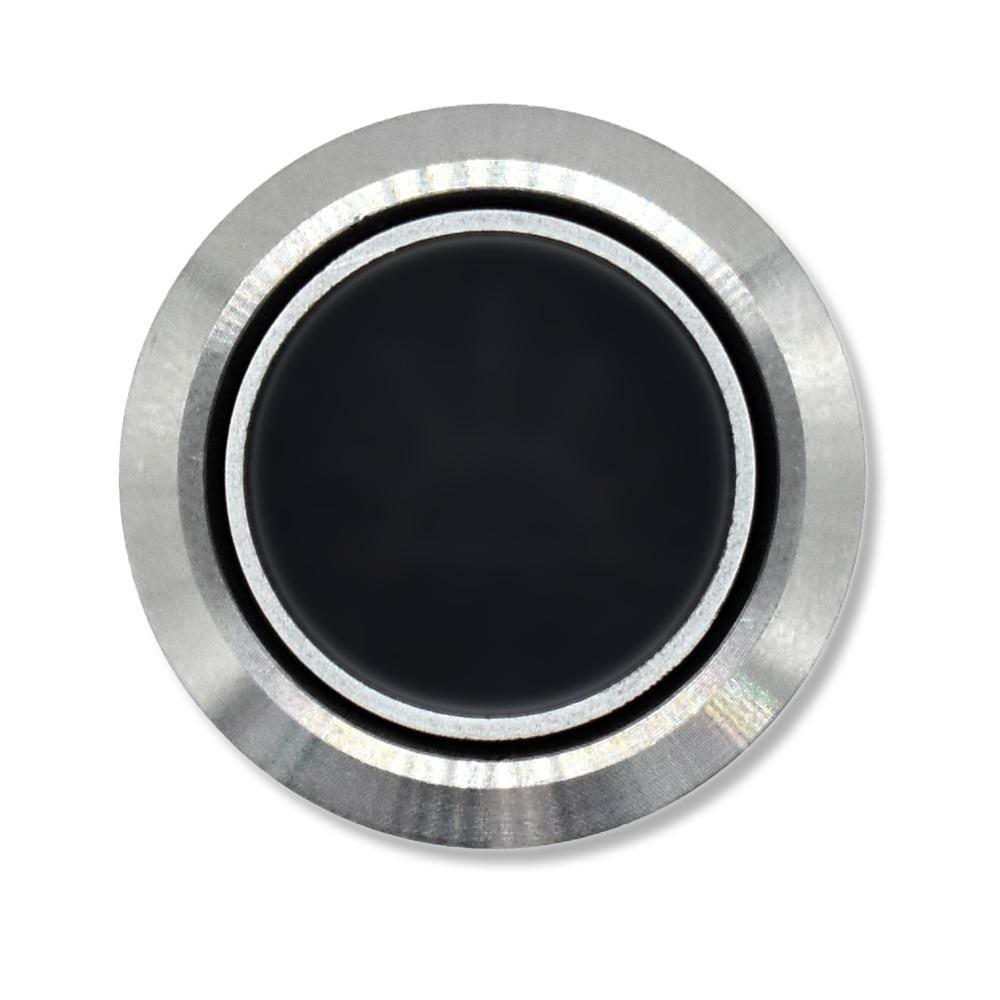

Bluewater 22mm Electronic Momentary Horn Switch, Red LED

Model: 9059-2213

• Horn Switch — Press and hold to sound the horn; release to turn it off.
• Red LED — Lights red while the horn is on.
• Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
• IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9059-2213 is a 22mm momentary switch for horn circuits, with inrush protection and a red LED indicator.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications

Function	Off-(On) momentary horn switch
LED Indicators	Red while pressed
Voltage/Current	20A @ 12–24VDC
Inrush Rating	120A for 120µs
Protection Rating	IP69K
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	22mm
Connector	Deutsch-style (22mm harness 9053-3914 sold separately)
