22mm Electronic Timer Switch, 2-Minute Auto-Off

Bluewater 22mm Electronic Timer Switch, 2-Minute Auto-Off

Model: 9059-1555-2F

• Auto-Off Timer — Press to turn on, and the switch shuts the load off automatically after 2 minutes.
• Early Shut-Off — Press again during the countdown to turn the load off immediately.
• Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
• IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

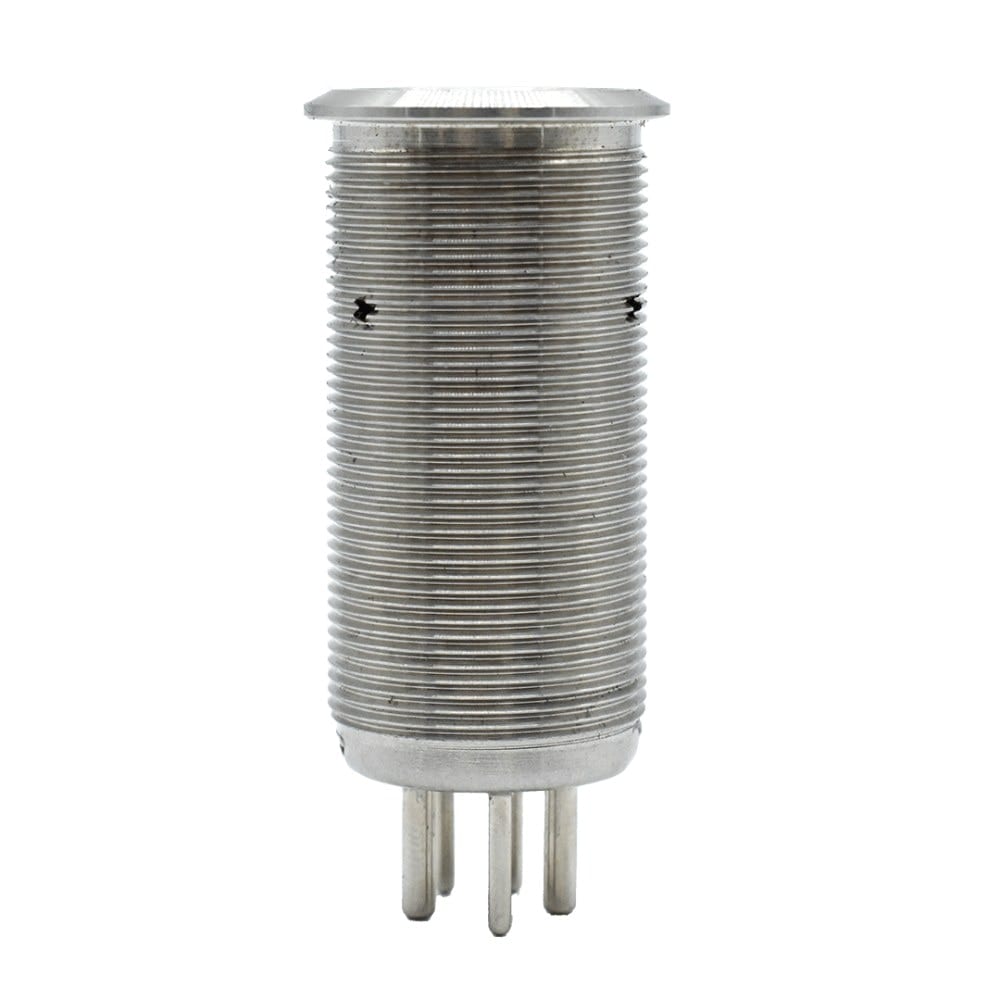

The Bluewater 9059-1555-2F is a 22mm electronic switch with a built-in 2-minute on-only timer, so loads such as pumps, blowers or courtesy lights never get left running. The LED shows blue when off and red while the timer is running.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications

Function	Timed On, auto-off after 2 minutes
LED Indicators	Blue off / Red on
Voltage/Current	20A @ 12–24VDC
Inrush Rating	120A for 120µs
Protection Rating	IP69K
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	22mm
Connector	Deutsch-style (22mm harness 9053-3914 sold separately)
