22mm Electronic Timer Switch, On/Off with 1-Minute Cycle Timer

Bluewater 22mm Electronic Timer Switch, On/Off with 1-Minute Cycle Timer

Model: 9059-1555

• Two Modes in One — Use as a standard On/Off switch or as a repeating cycle timer.
• Cycle Timer — Runs the load for 1 minute, then off for 2 minutes, and repeats, ideal for livewell and baitwell pumps.
• Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
• IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

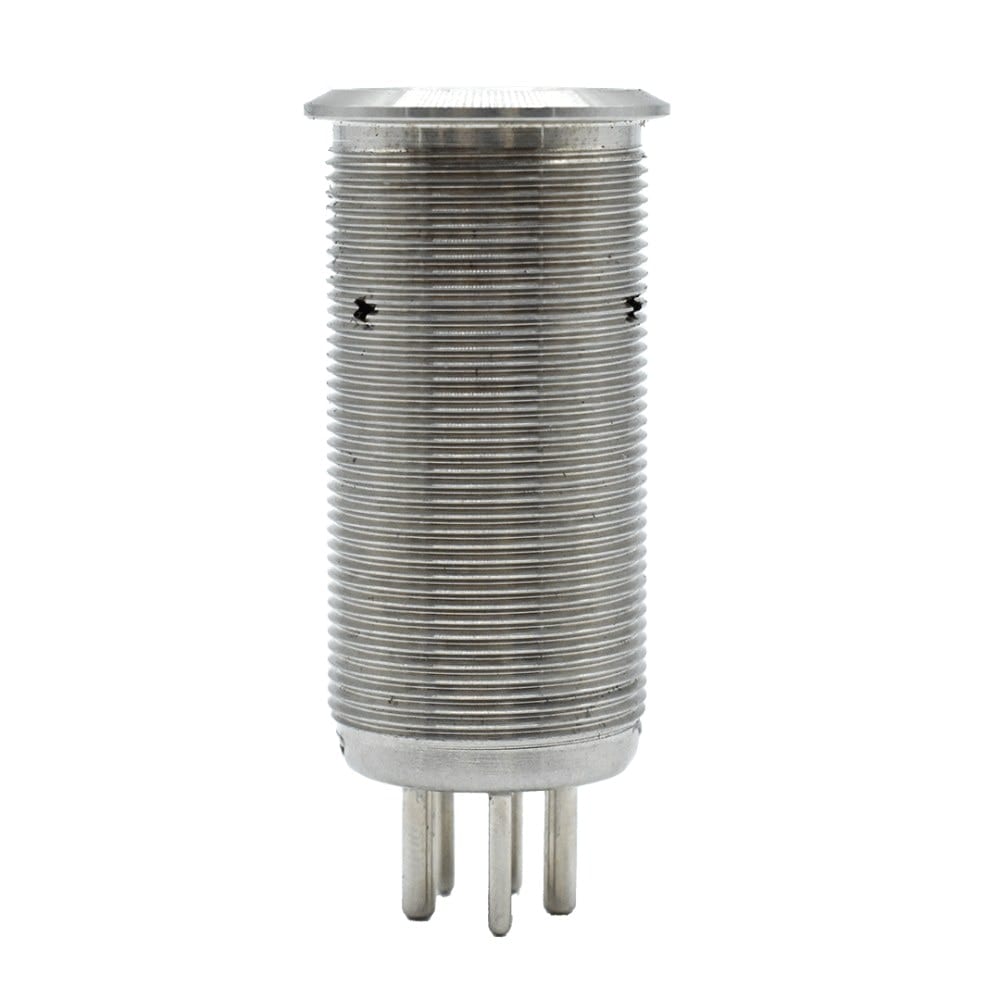

The Bluewater 9059-1555 is a 22mm electronic timer switch that cycles a load on and off automatically, with LED colors that show which mode is active. Press again to cancel the timer.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications

Function	On/Off with repeating timer (1 min on / 2 min off)
LED Indicators	Blue / Red / Green / Yellow by mode
Voltage/Current	20A @ 12–24VDC
Inrush Rating	120A for 120µs
Protection Rating	IP69K
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	22mm
Connector	Deutsch-style (22mm harness 9053-3914 sold separately)
