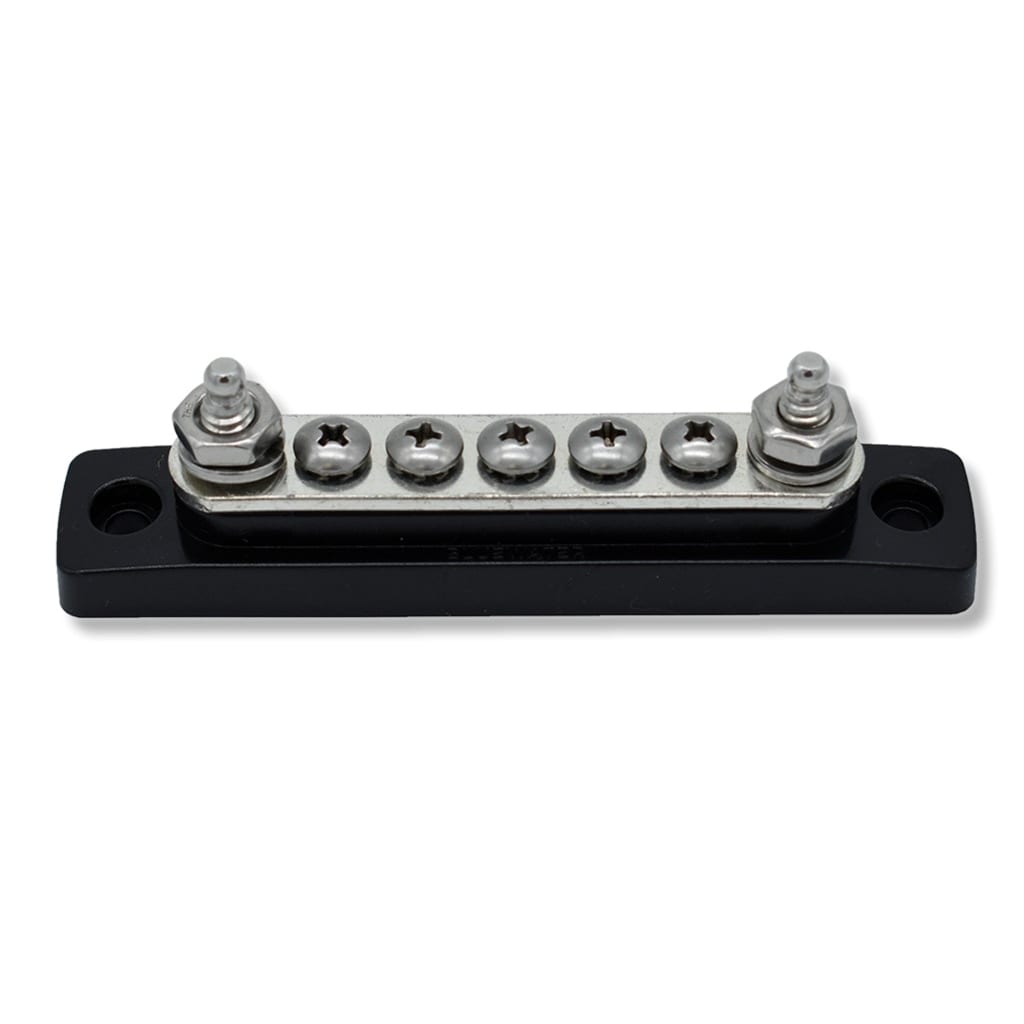

5 Position Bus Bar

Bluewater 5 Position Bus Bar

Model: 312314-B-020

This compact 5-terminal busbar supports up to 100 amps, providing clean and reliable power distribution for smaller systems. It’s ideal for organizing circuits in tight marine or automotive panels where space is limited.

The compact marine busbar design ensures easy installation without sacrificing durability or performance.

Whether you’re upgrading an existing system or building new electrical panels, this compact marine busbar offers a streamlined solution that keeps wiring neat and efficient.

Specifications

Current	Rated up to 100 AMP
Stud Size	1/4" Stainless Steel
Mounting Holes	0.21"
Mounting Screw Size	#10, 1/4"
Distance Between Mounting Holes	5.25"
Installation	Mount with (2) #10, 1/4" Screws
