Mid-Range 20A Panel Mount Circuit Breaker

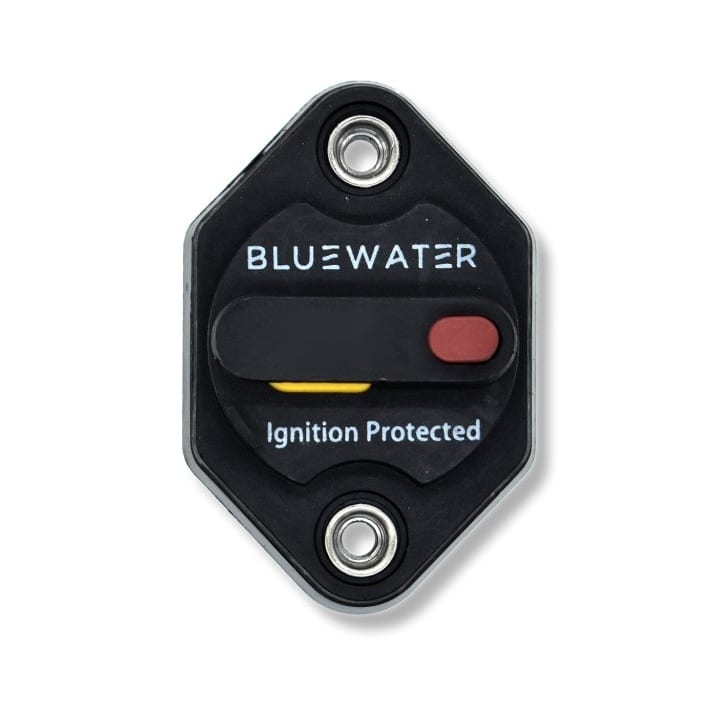

Bluewater Mid-Range 20A Panel Mount Circuit Breaker

Model: 78000-9600-20

• 20 Amp Rating — Reliable overload and short-circuit protection for moderate-load DC circuits.
• 12–32V DC Compatible — Suited to marine, RV and mobile electrical systems.
• High Interrupting Capacity — Up to 2500A for dependable short-circuit protection.
• Rugged Build — Thermoplastic housing with nickel-plated copper components.
• Marine Grade — Withstands vibration, moisture and harsh marine environments.

Bluewater Mid-Range circuit breakers protect moderate-load DC systems such as auxiliary and accessory circuits.

This 20A panel mount version installs cleanly in a panel and connects with #10 ring terminals. Surface mount versions are also available.

Installation: Use #10 ring terminals to connect.

Specifications

Current Rating	20A
Max Voltage	32V DC
Voltage Compatibility	12–32V DC
Interrupting Capacity	Up to 2500A
Mounting	Panel mount
Material	Thermoplastic / Nickel-plated copper
Terminals	#10 ring terminal
