BLUEWATER
Mid-Range 60A Panel Mount Circuit Breaker
- Manufacturer part #
- 78000-9600-60
- UPC
- 810196332393
- Condition
- New
$15.00
In stock
Estimated to ship by Monday, October 19.
Product details

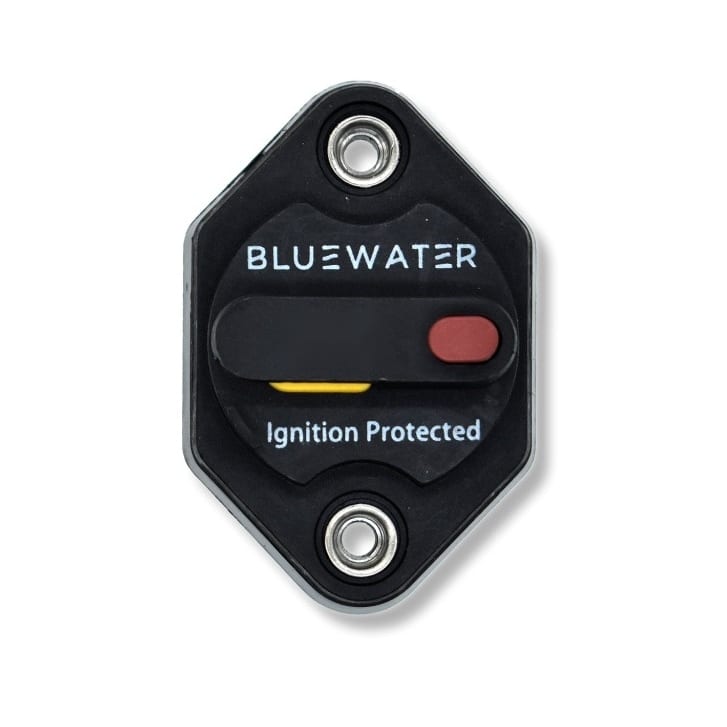

Bluewater Mid-Range 60A Panel Mount Circuit Breaker
Model: 78000-9600-60- 60 Amp Rating — Reliable overload and short-circuit protection for moderate-load DC circuits.
- 12–32V DC Compatible — Suited to marine, RV and mobile electrical systems.
- High Interrupting Capacity — Up to 2500A for dependable short-circuit protection.
- Rugged Build — Thermoplastic housing with nickel-plated copper components.
- Marine Grade — Withstands vibration, moisture and harsh marine environments.
Bluewater Mid-Range circuit breakers protect moderate-load DC systems such as auxiliary and accessory circuits.
This 60A panel mount version installs cleanly in a panel and connects with #10 ring terminals. Surface mount versions are also available.
Installation: Use #10 ring terminals to connect.
Specifications| Current Rating | 60A |
| Max Voltage | 32V DC |
| Voltage Compatibility | 12–32V DC |
| Interrupting Capacity | Up to 2500A |
| Mounting | Panel mount |
| Material | Thermoplastic / Nickel-plated copper |
| Terminals | #10 ring terminal |
