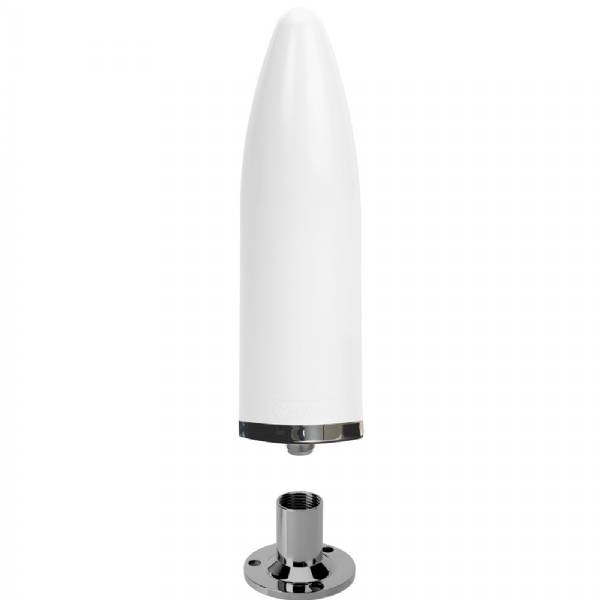

1685PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi Deck Mount

Digital Antenna 1685-PW Wideband Deck Mount Antenna

Model: 1685-PW

• Maximum power for 4G, 5G, WiFi signals
• 9dBi omni-directional gain
• Foam filled to withstand extreme vibrations
• 316 stainless steel base
• Includes Deck Mount
• Weatherproof N female connector
• 5-year warranty

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Specifications

Radiation Pattern	Omni-Directional
Gain	9dB
Bandwidth	VSWR (3g, 4G, 5G, WiFi) <1.5: 1 = 600-3000 mHZ
Cable	Not included
Impedance	50 ohms
Maximum input power	50 watts
RF Connector	N Type Female
Polarization	Vertical
Wind rating	> 160 KPH
